Type 8 Short Adjustable Single Disconnect Sway Bar Links

RedRunner Designs Type 8 Sway Bar Links are our short bushing to heim style sway bar link setup.

These links are built for tight fit applications that need a very short sway bar link with a mounting length of 3 to 3.25 inches center to center. They are basically a super short single disconnect version of our Type 1 design, using a bushing style upper mount and a heim joint lower mount.

Type 8 links were originally built around early Toyota Tacoma fitment and other compact custom applications where space is limited but strength, adjustability, and serviceability still matter.

Type 8 links are available with red or black upper bushings and your choice of lower bolt on hardware or lower quick disconnect hardware.

Key Features

Short Adjustable Design – Built for tight clearance applications needing a 3 to 3.25 inch center to center mounting length.

Bushing to Heim Construction – Uses an upper bushing mount with a lower FK Bearing heim joint.

Single Lower Quick Disconnect Option – The lower mount can be ordered as a quick disconnect for applications where removable lower hardware is desired.

Bolt On Option – A secure, non disconnect lower mounting option for street use, daily driving, or setups that do not need quick disconnects.

Red or Black Upper Bushings – Available with your choice of red or black upper bushings.

Adjustable and Rebuildable – Fine tune the length for your setup and replace worn components instead of replacing the entire link.

Made in the USA – Proudly made on home turf.

Bushing Color Options

Type 8 links are available with two upper bushing color options.

Red Upper Bushings

A classic RedRunner look with red upper bushings.

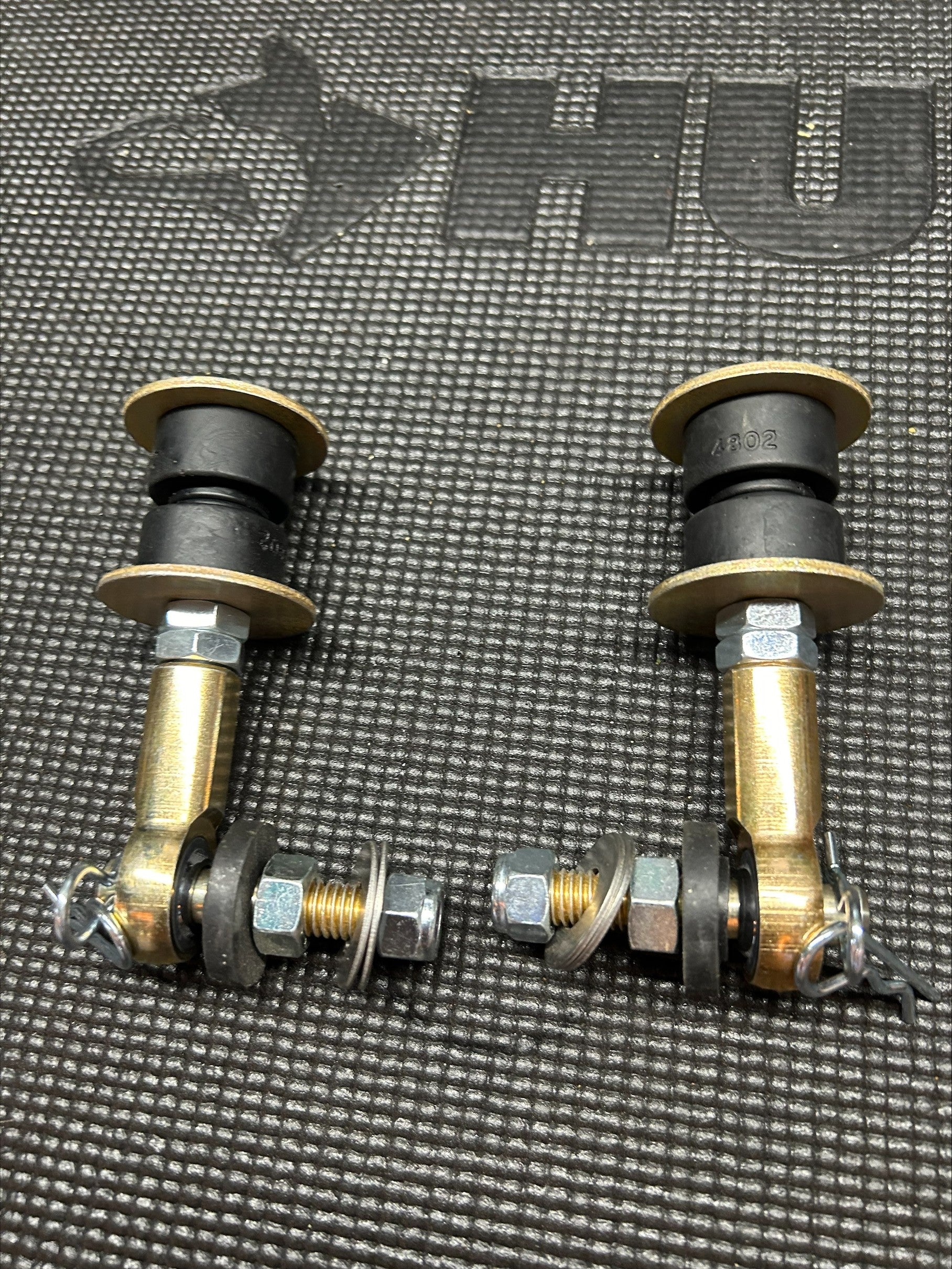

Black Upper Bushings

A cleaner, more subtle look with black upper bushings.

Lower Hardware Options

Type 8 links are available with two lower hardware styles.

Only the lower mount is available as a quick disconnect. The upper mount remains a bushing style mount.

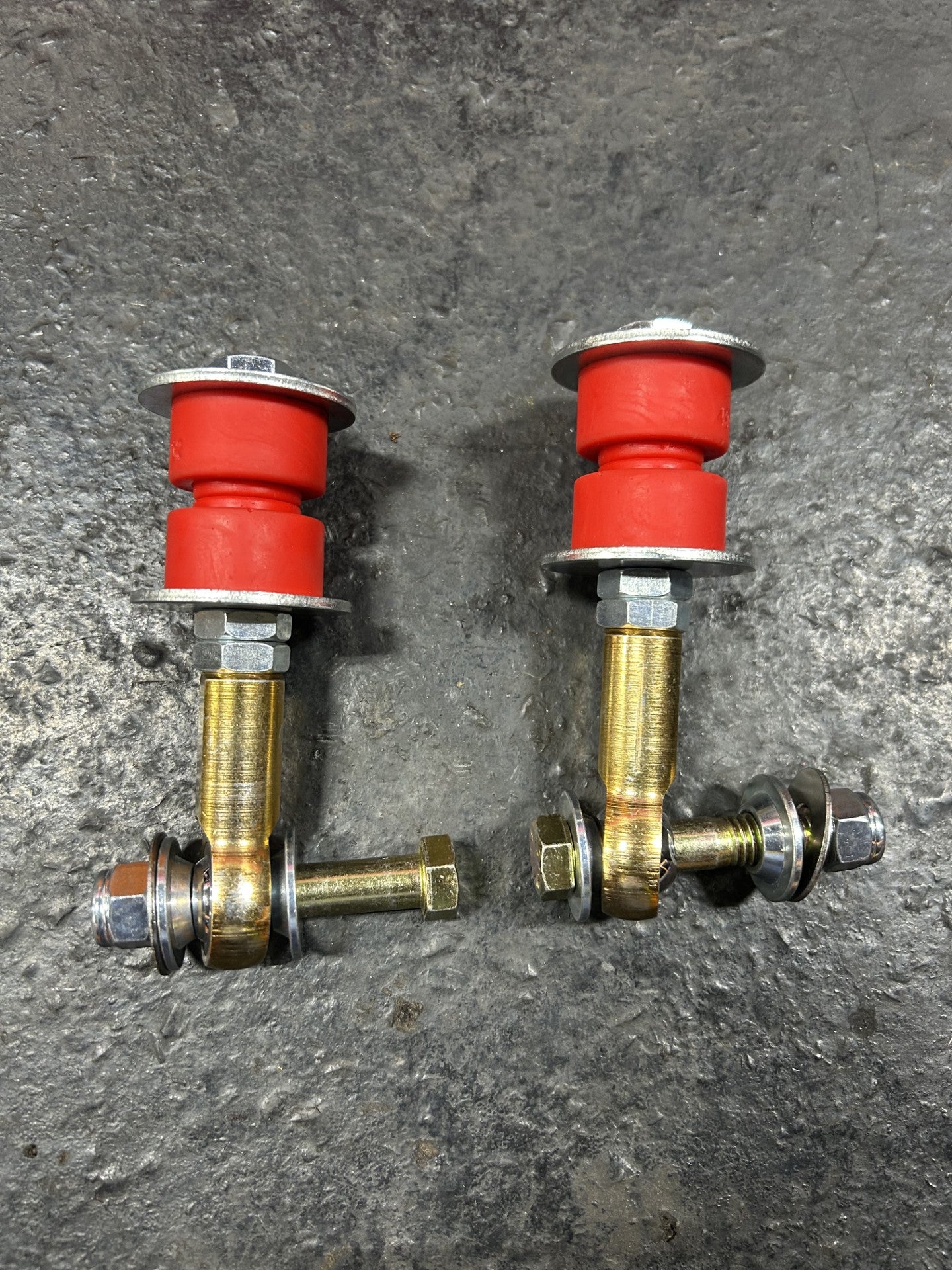

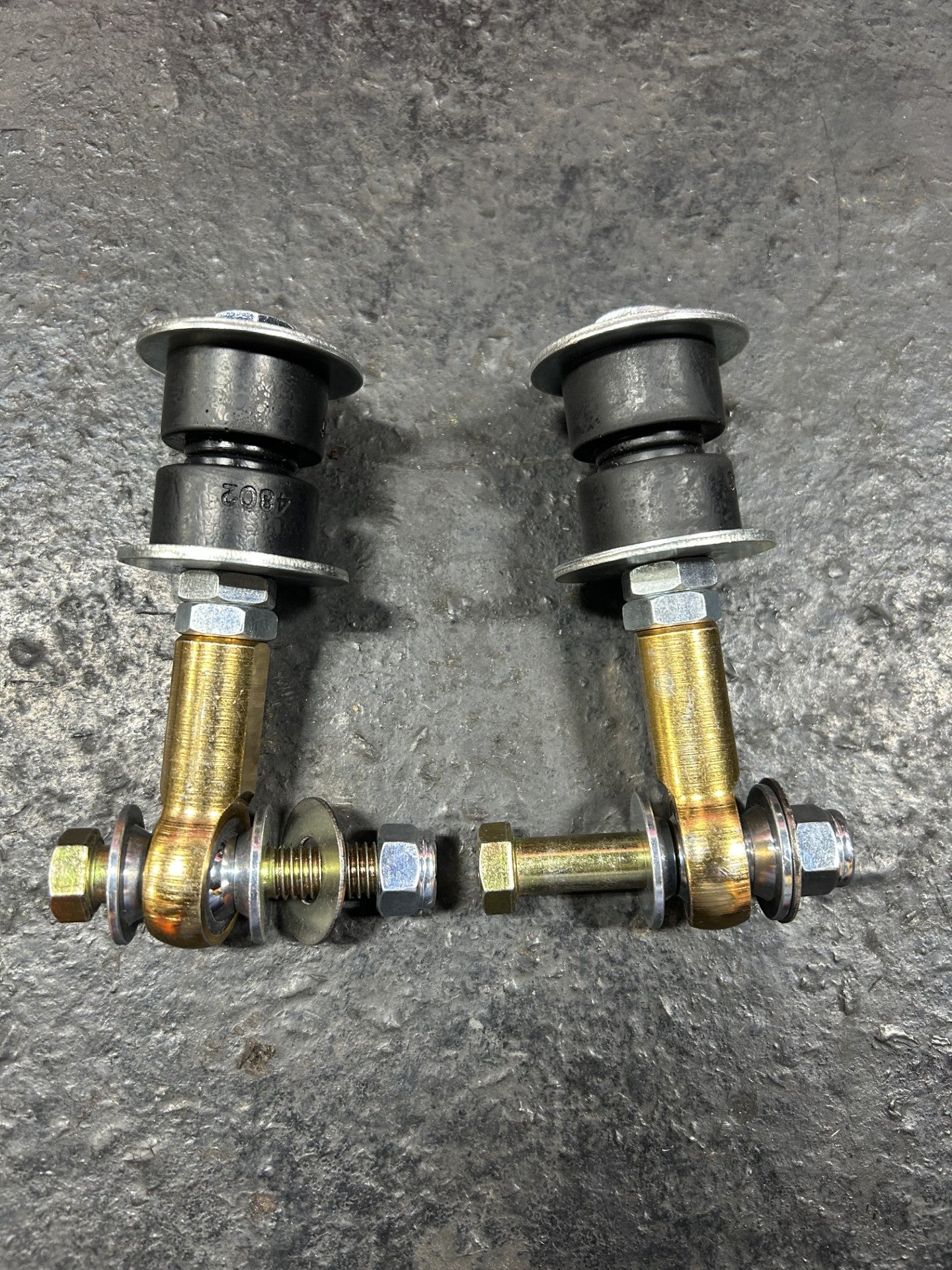

Bolt On Lower Hardware

• Includes short 7/16 inch bolt on lower mounting hardware
• 24 mm usable mounting length
• Approximately 0.94 inch usable mounting length
• Non disconnect setup
• Best for street use, daily driving, or applications where quick disconnects are not needed

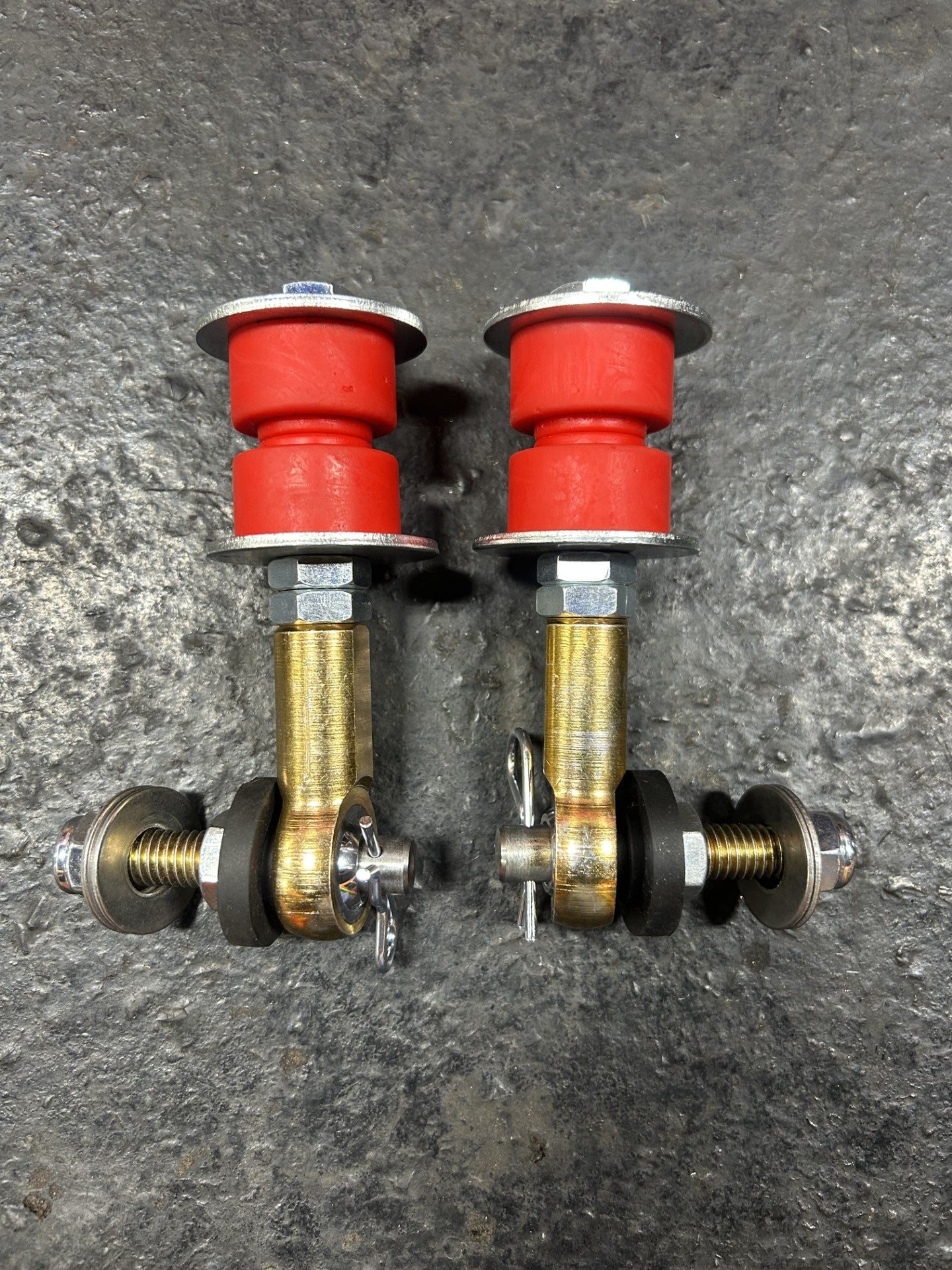

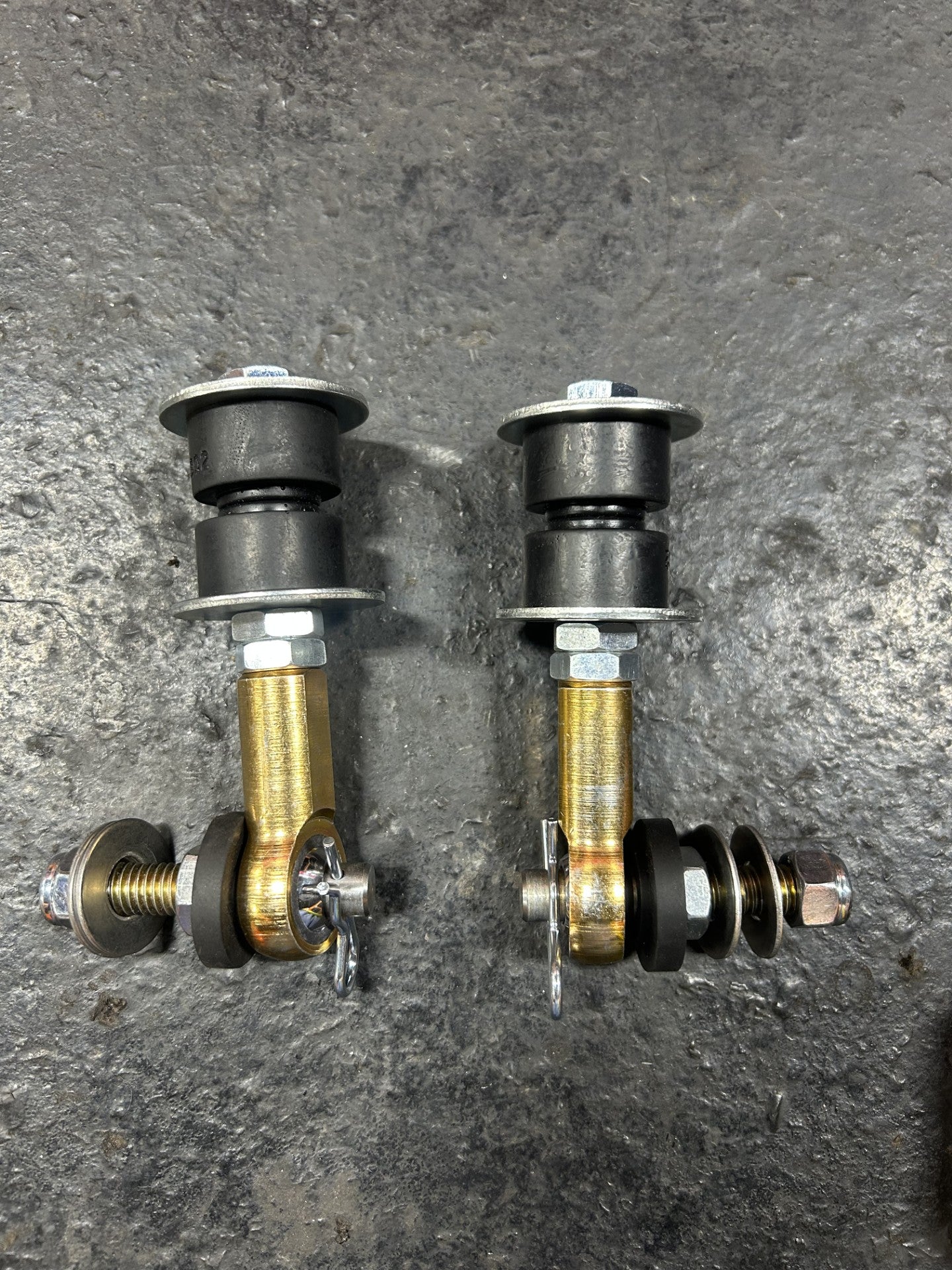

Quick Disconnect Lower Hardware

• Includes 7/16 inch lower quick disconnect pin
• 15.25 mm usable thread
• Approximately 0.60 inch usable thread
• Allows the lower mount to be disconnected when needed
• Best for applications where a compact single lower disconnect is desired

Usable mounting length is the remaining mounting space available after the included hardware and proper nyloc engagement are accounted for.

Usable thread is the remaining threaded mounting space available after the nut, washer, and proper nyloc engagement are accounted for.

Mounting Length Range

Type 8 links are built for applications needing a mounting length of:

3 to 3.25 inches center to center

Before ordering, measure your current sway bar link mounting length and confirm that this range will work for your vehicle.

Common and Developing Applications

Type 8 links are intended for short sway bar link applications where space is limited and a longer link will not fit.

Common and developing applications include:

Early Toyota Tacoma applications
Custom off road builds
Compact suspension setups
Short sway bar link applications
Tight clearance custom mounts
Other vehicles requiring a very short bushing to heim sway bar link

Fitment Note

Vehicle application alone does not guarantee fitment. The required link length, mounting point thickness, mounting angle, and available clearance all matter.

On very short setups, disconnecting the lower mount can be tighter than on longer sway bar link designs. The lower quick disconnect option is available, but you should confirm that there is enough room around the lower mount to access and remove the pin.

Not Sure Which Setup You Need?

Before ordering, we recommend checking:

Current sway bar link mounting length
Upper and lower mounting point thickness
Mounting angle and alignment
Clearance around the sway bar, suspension, axle, steering, brake, and CV components
Whether you need lower quick disconnect or bolt on hardware
Preferred upper bushing color

Send us your year, make, model, lift height or suspension setup, current mounting length, mounting point thickness, and photos of both mounting points and we will help you choose the correct RedRunner setup.

Important Safety Notice

For quick disconnect setups, you are responsible for securely supporting the sway bar when it is disconnected. Depending on the vehicle and suspension setup, an unsecured sway bar may contact surrounding suspension, steering, axle, brake, or CV components.

Always secure the sway bar before driving.

You may also disconnect only one side, leaving the opposite link connected to help support the sway bar while providing the same disconnect effect.

Short. Adjustable. Rebuildable. Built for compact sway bar link applications.

Sold as a PAIR.
