(Type 7) Adjustable Short Double Heim Sway Bar Link for Tacoma's, Custom Applications and More

RedRunner Designs Type 7 Sway Bar Links are our shortest adjustable double heim sway bar link setup.

These links are built for applications that need a very short sway bar link, with an adjustment range of 3 to 3.5 inches center to center. They were originally designed around the 2001–2004 Toyota Tacoma, but may work on many other vehicles with similar short link requirements.

The Type 7 design is essentially the smallest version of our Type 2 and Type 4 style link, using FK Bearing heim joints at both ends with no bushing style mount.

Type 7 links are available as either a quick disconnect setup with 7/16 inch quick disconnect pins or a bolt on setup with short bolt on mounting pins.

Key Features

Short Adjustable Design – Adjustable from 3 to 3.5 inches center to center for very short sway bar link applications.

Double Heim Joint Construction – Uses FK Bearing heim joints at both ends for strength, movement, and adjustability.

Quick Disconnect or Bolt On Options – Choose the hardware style that matches your setup.

7/16 Inch Quick Disconnect Pin Option – Allows the sway bar to be disconnected when more suspension movement is needed off road.

Short Bolt On Pin Option – A secure, non disconnect option for applications where a permanent sway bar link is preferred.

Adjustable and Rebuildable – Fine tune the length for your setup and replace worn components instead of replacing the entire link.

Made in the USA – Proudly made on home turf.

Hardware Options

Type 7 links are available with two hardware styles.

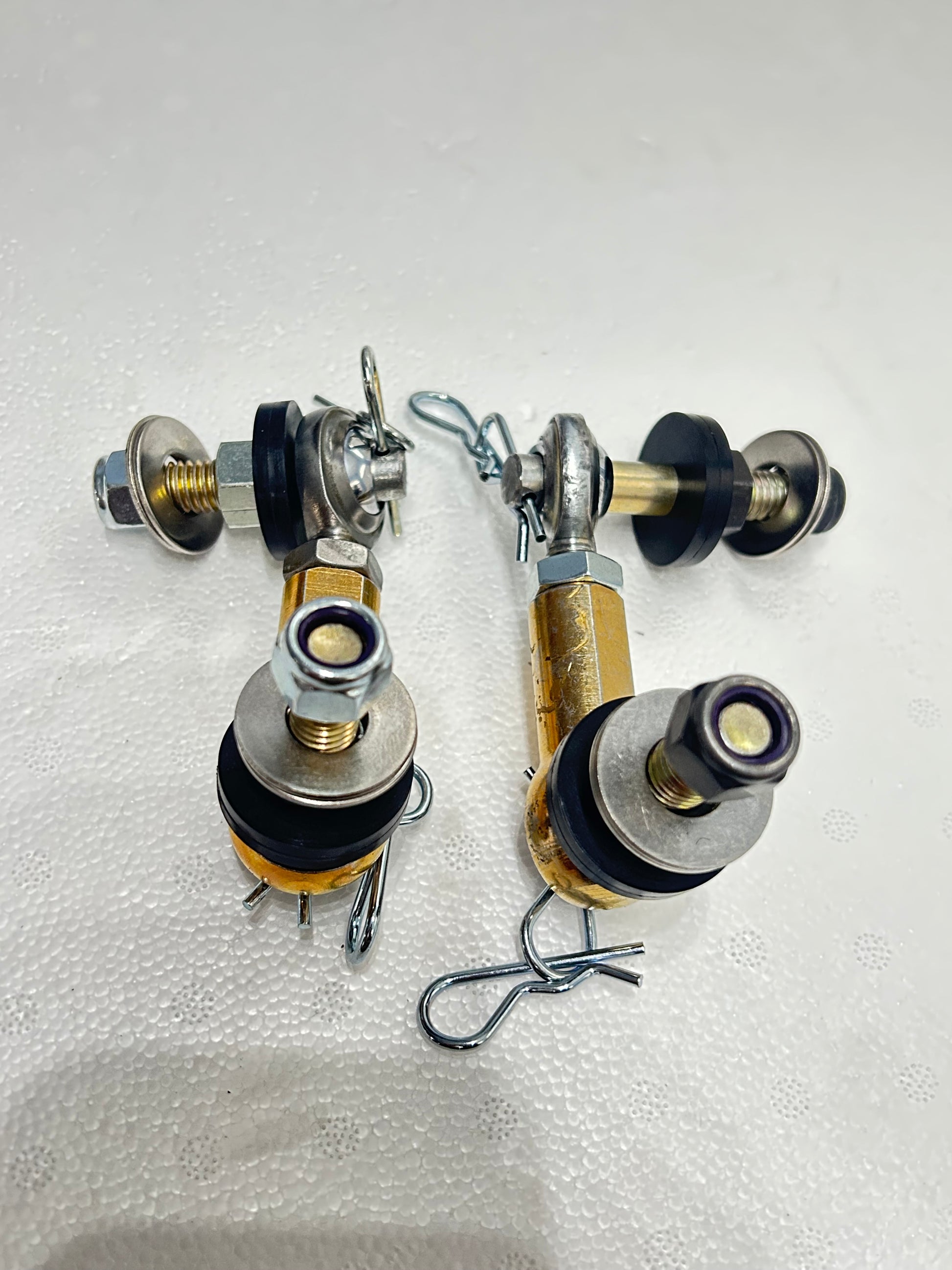

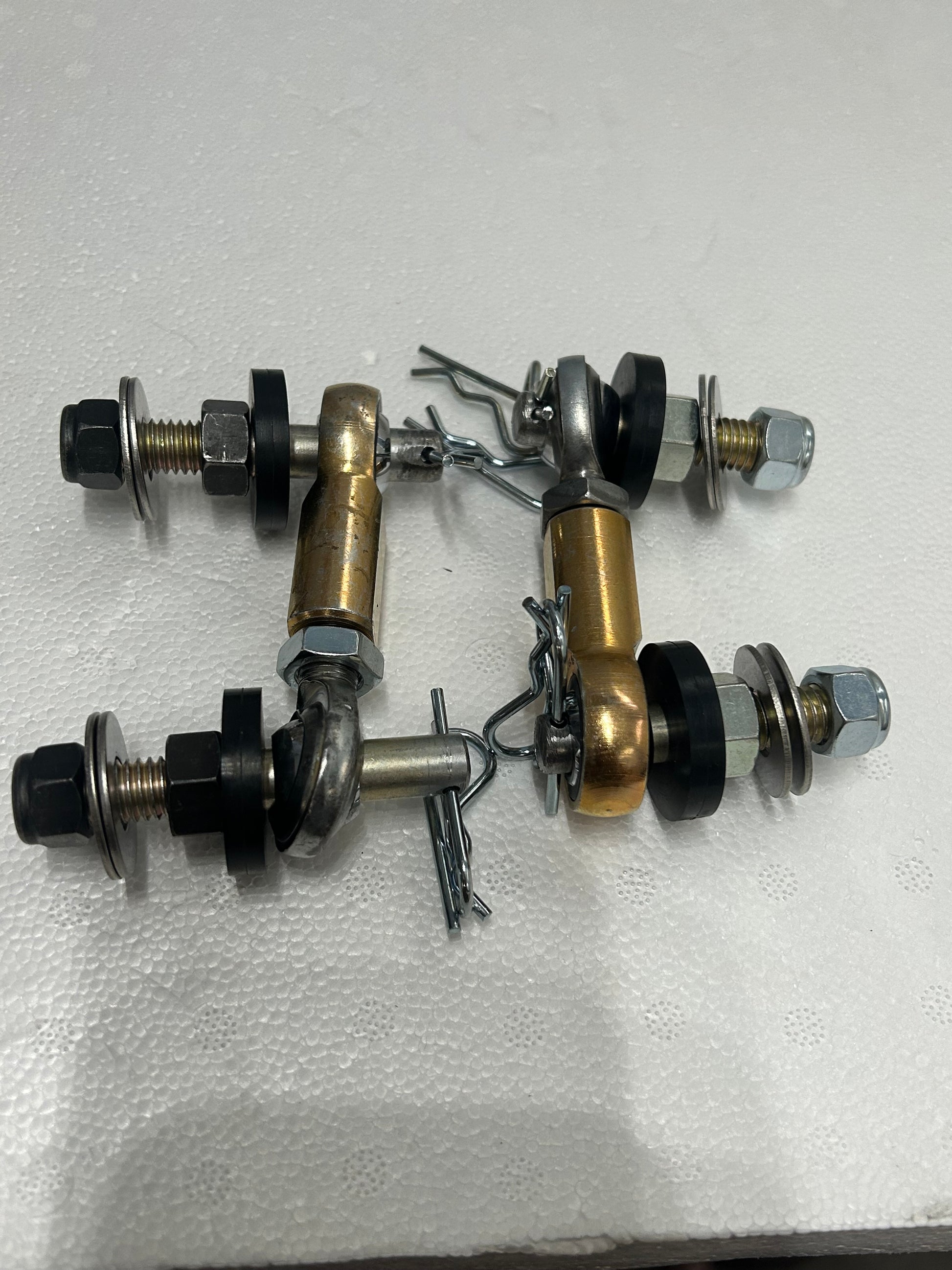

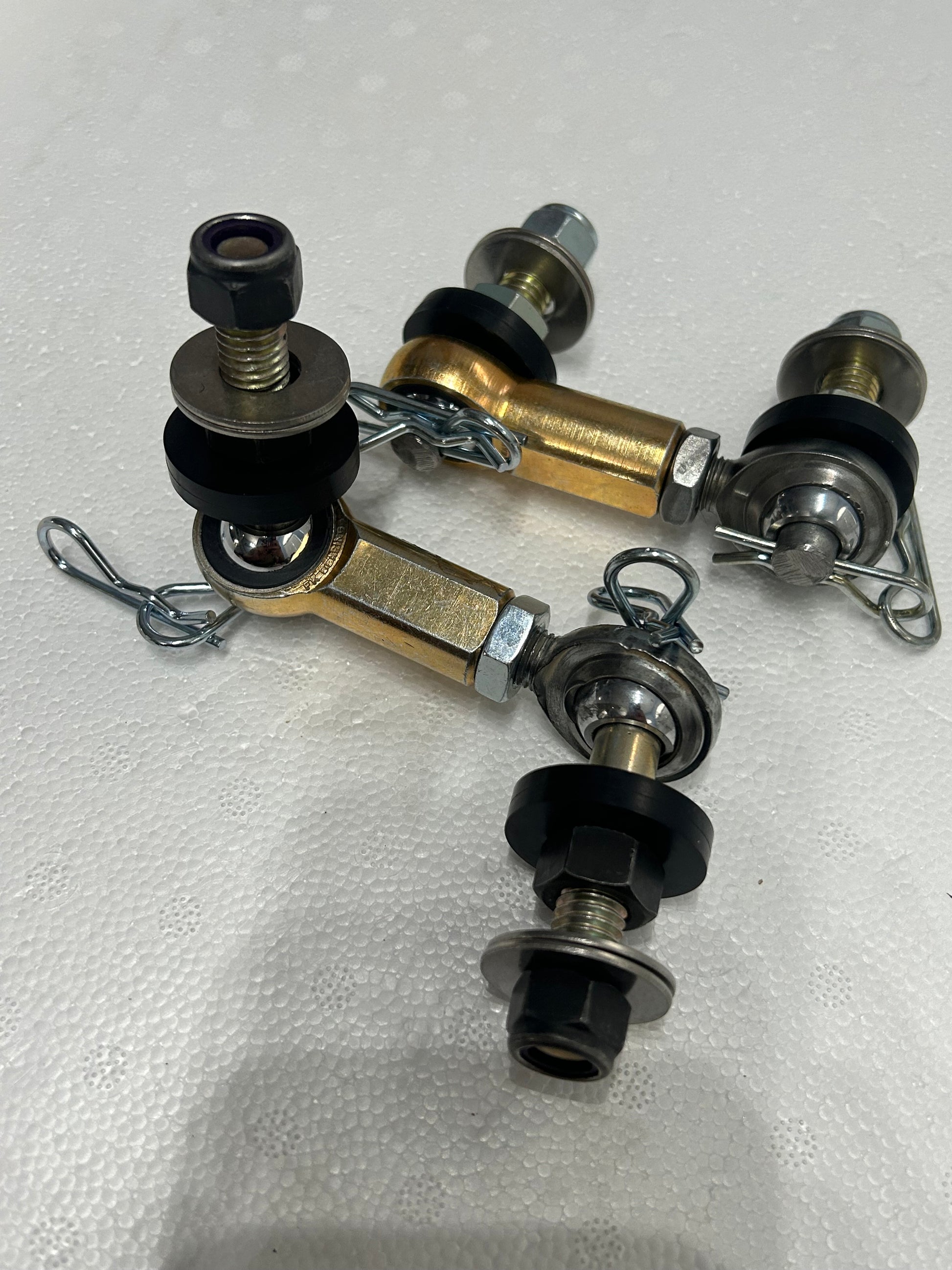

Quick Disconnect

• Includes 7/16 inch quick disconnect pins
• 15.25 mm usable thread
• Approximately 0.60 inch usable thread
• Allows the sway bar to be disconnected when needed
• Best for off road applications where added suspension movement is desired

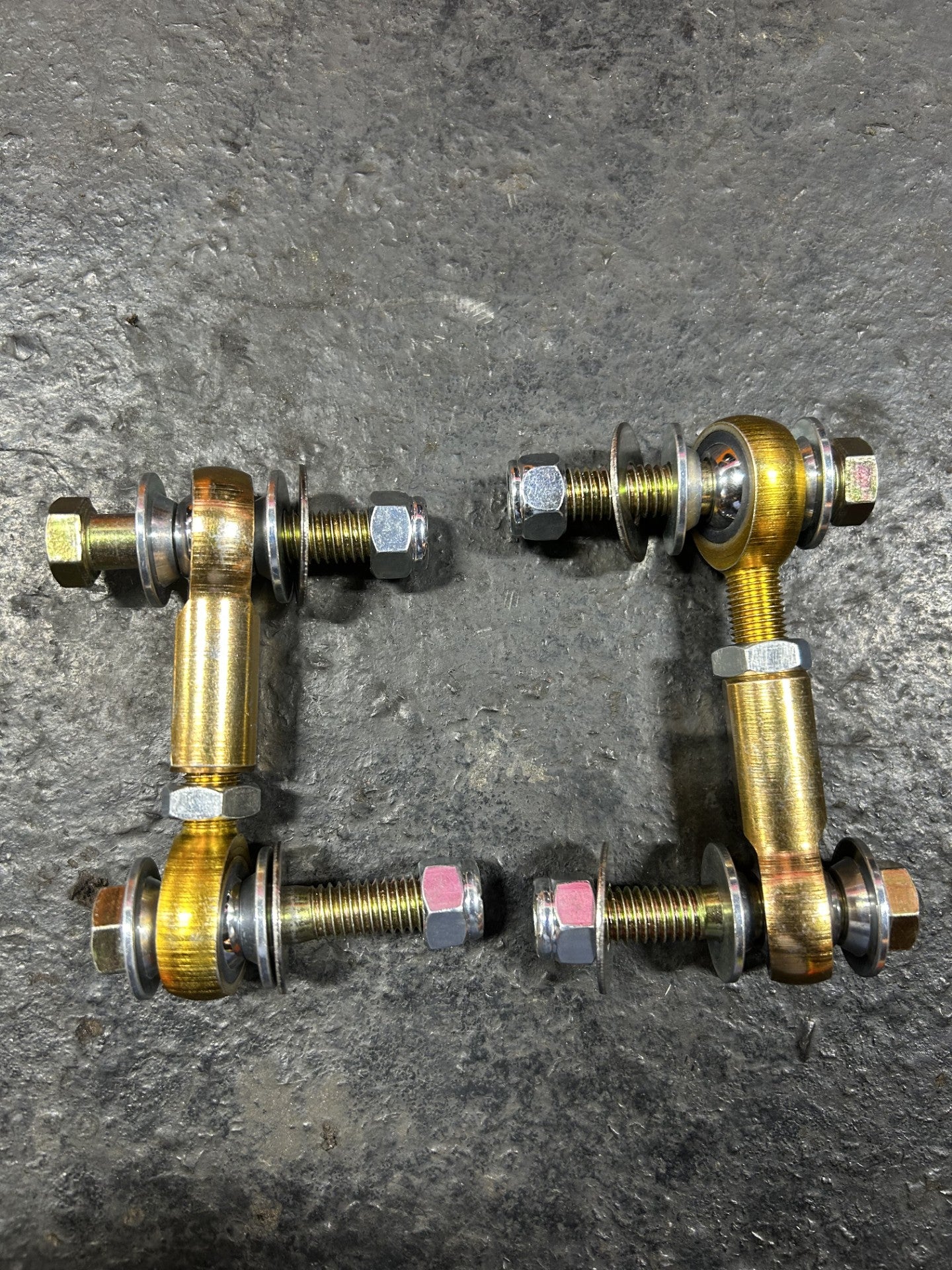

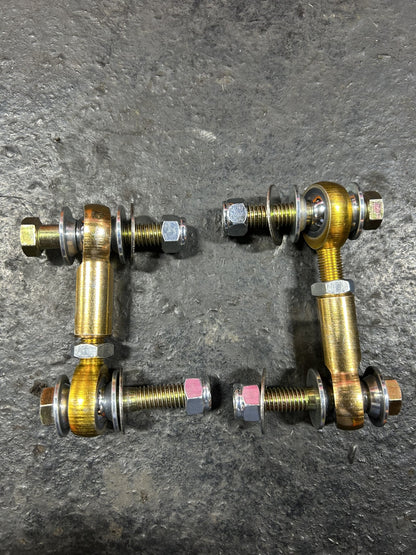

Bolt On

• Includes short bolt on mounting pins
• 24 mm usable mounting length
• Approximately 0.94 inch usable mounting length
• Non disconnect setup
• Best for street use, daily driving, or applications where quick disconnects are not needed

Usable thread is the remaining threaded mounting space available after the nut, washer, and proper nyloc engagement are accounted for.

Usable mounting length is the remaining mounting space available after the included hardware and proper nyloc engagement are accounted for.

Before ordering, measure your mounting point thickness and current sway bar link length to confirm the correct hardware style.

Length Range

Type 7 links adjust from:

3 to 3.5 inches center to center

Before ordering, measure your current sway bar link mounting length and confirm that this adjustment range will work for your vehicle.

Common and Developing Applications

Type 7 was originally designed for the 2001–2004 Toyota Tacoma and may fit other vehicles with similar short sway bar link requirements.

Possible and developing applications include:

2001–2004 Toyota Tacoma
1996–2000 Toyota RAV4
1993–2002 Toyota Corolla
1992–1996 Lexus ES300
1998–2002 Chevy Prizm
1994–1999 Toyota Celica
1993–2002 Toyota Avalon
2004–2013 Infiniti QX56
2014–2019 Infiniti QX80
2005–2019 Nissan Armada
2004–2015 Nissan Titan
2003–2013 Subaru Forester
2005–2015 Subaru Impreza
2005–2009 Subaru Legacy
2005–2009 Subaru Outback
2013–2014 Subaru WRX/STI

Fitment Note

This product is still being tested across multiple applications. Fitment will be updated as more vehicles are confirmed.

Vehicle application alone does not guarantee fitment. The required link length, mounting point thickness, mounting angle, and available clearance all matter.

If you are interested in testing Type 7 links on your vehicle, message us before ordering.

Not Sure Which Setup You Need?

Before ordering, we recommend checking:

Current sway bar link mounting length
Upper and lower mounting point thickness
Mounting angle and alignment
Clearance around the sway bar, suspension, axle, steering, brake, and CV components
Whether you need quick disconnect or bolt on hardware

Send us your year, make, model, lift height or suspension setup, current mounting length, mounting point thickness, and photos of both mounting points and we will help you choose the correct RedRunner setup.

Important Safety Notice

For quick disconnect setups, you are responsible for securely supporting the sway bar when it is disconnected. Depending on the vehicle and suspension setup, an unsecured sway bar may contact surrounding suspension, steering, axle, brake, or CV components.

Always secure the sway bar before driving.

You may also disconnect only one side, leaving the opposite link connected to help support the sway bar while providing the same disconnect effect.

Short. Adjustable. Rebuildable. Built for the setups that need a very compact sway bar link.

Sold as a PAIR.
