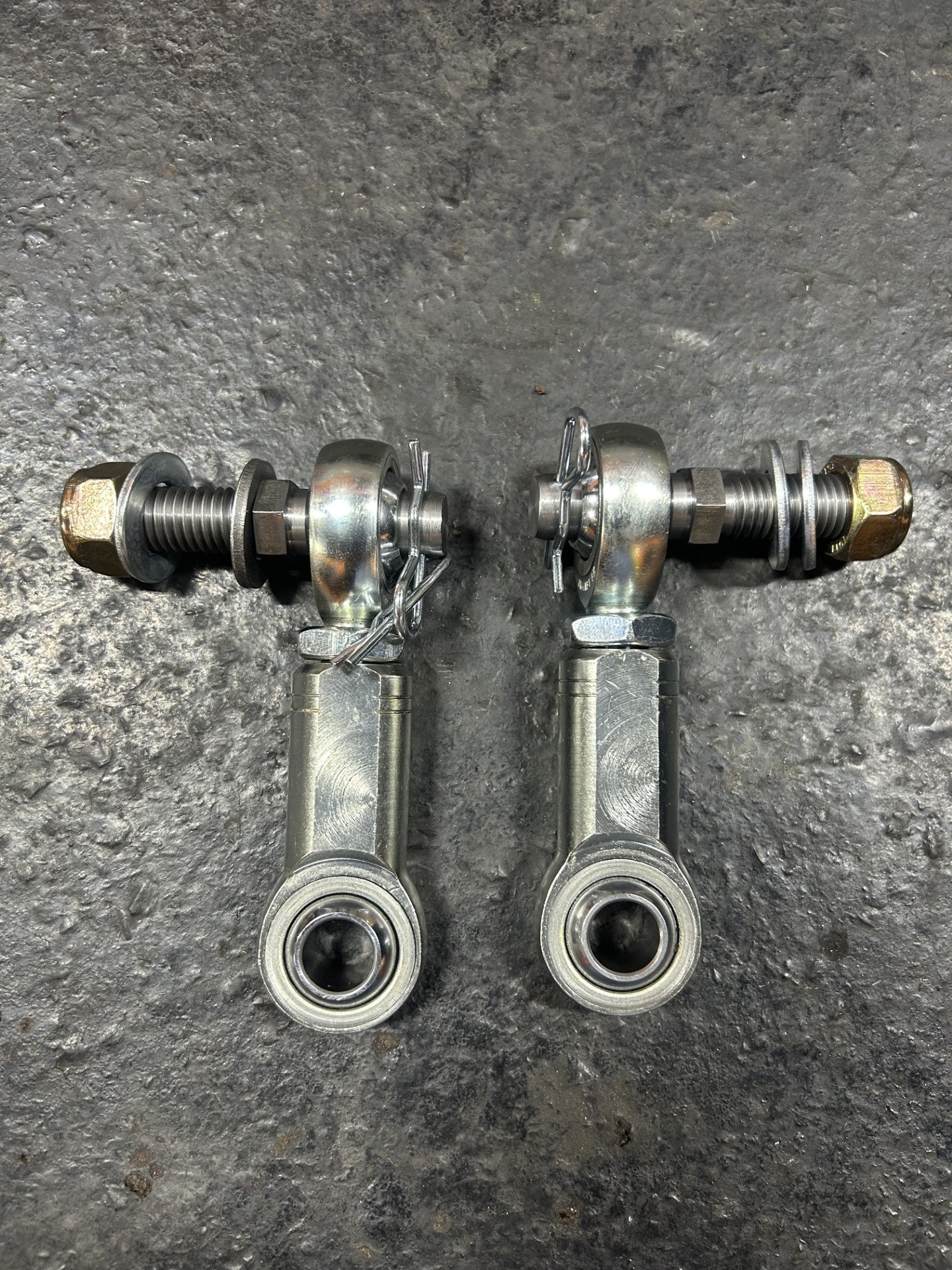

Type 6 Adjustable 14 mm Double Heim Sway Bar Links

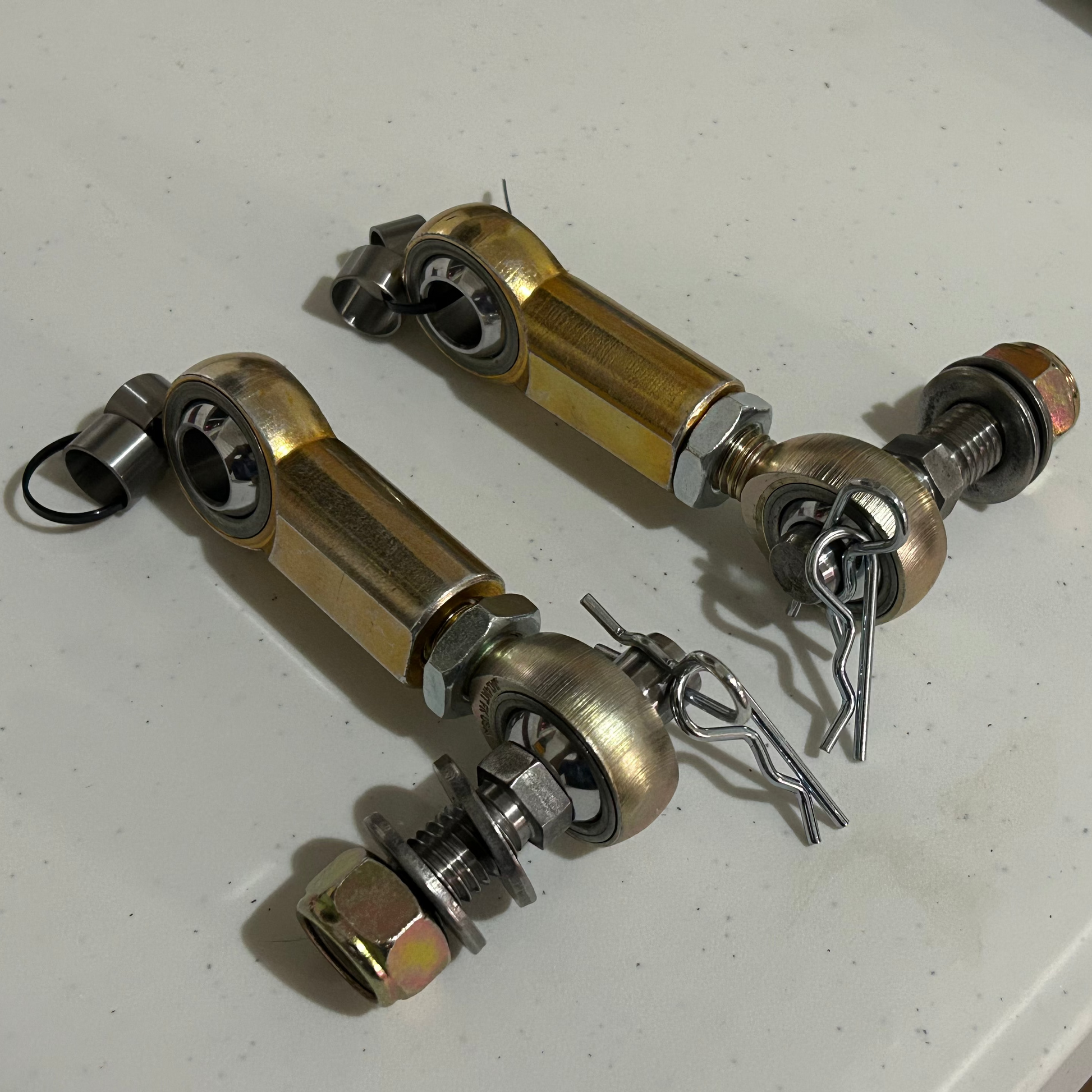

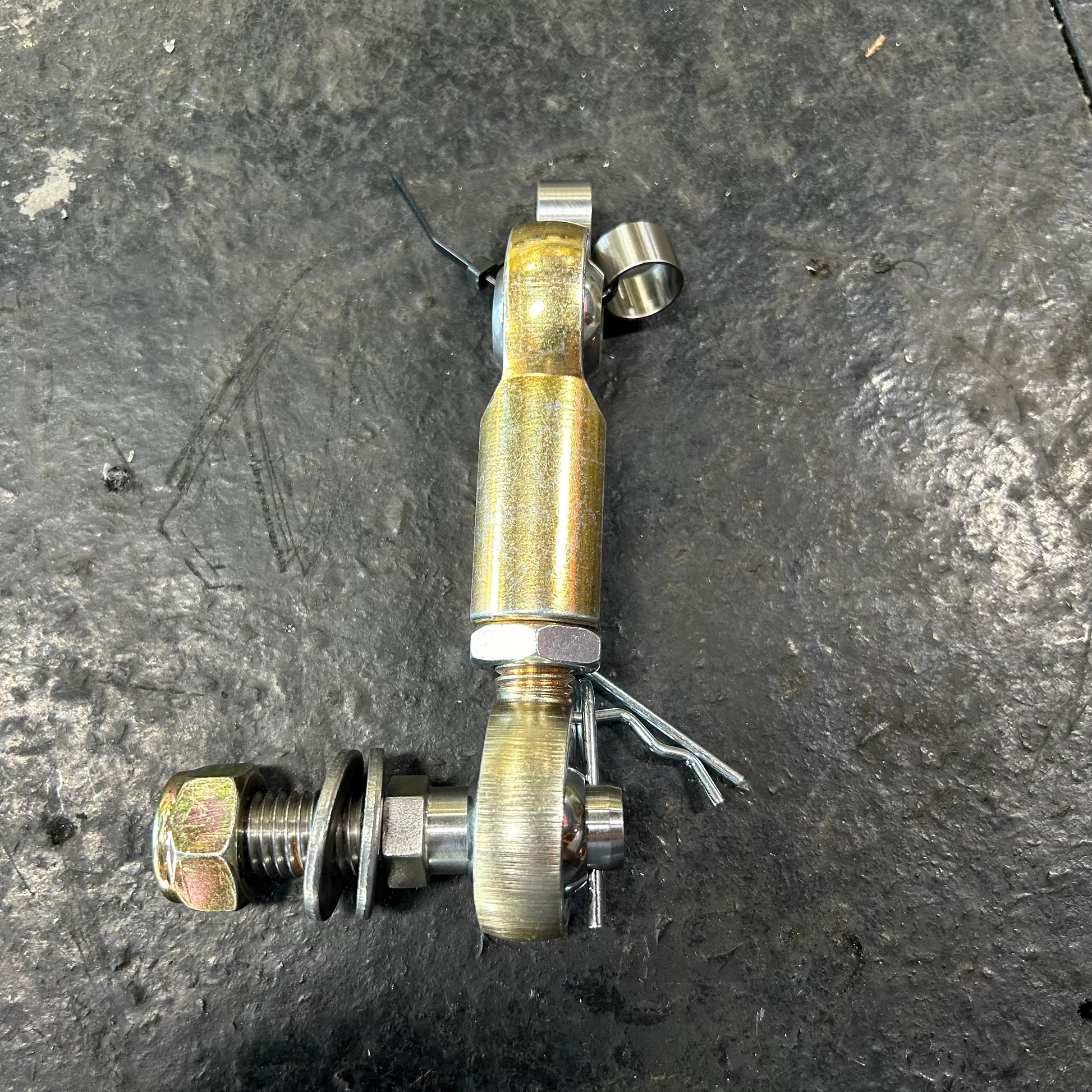

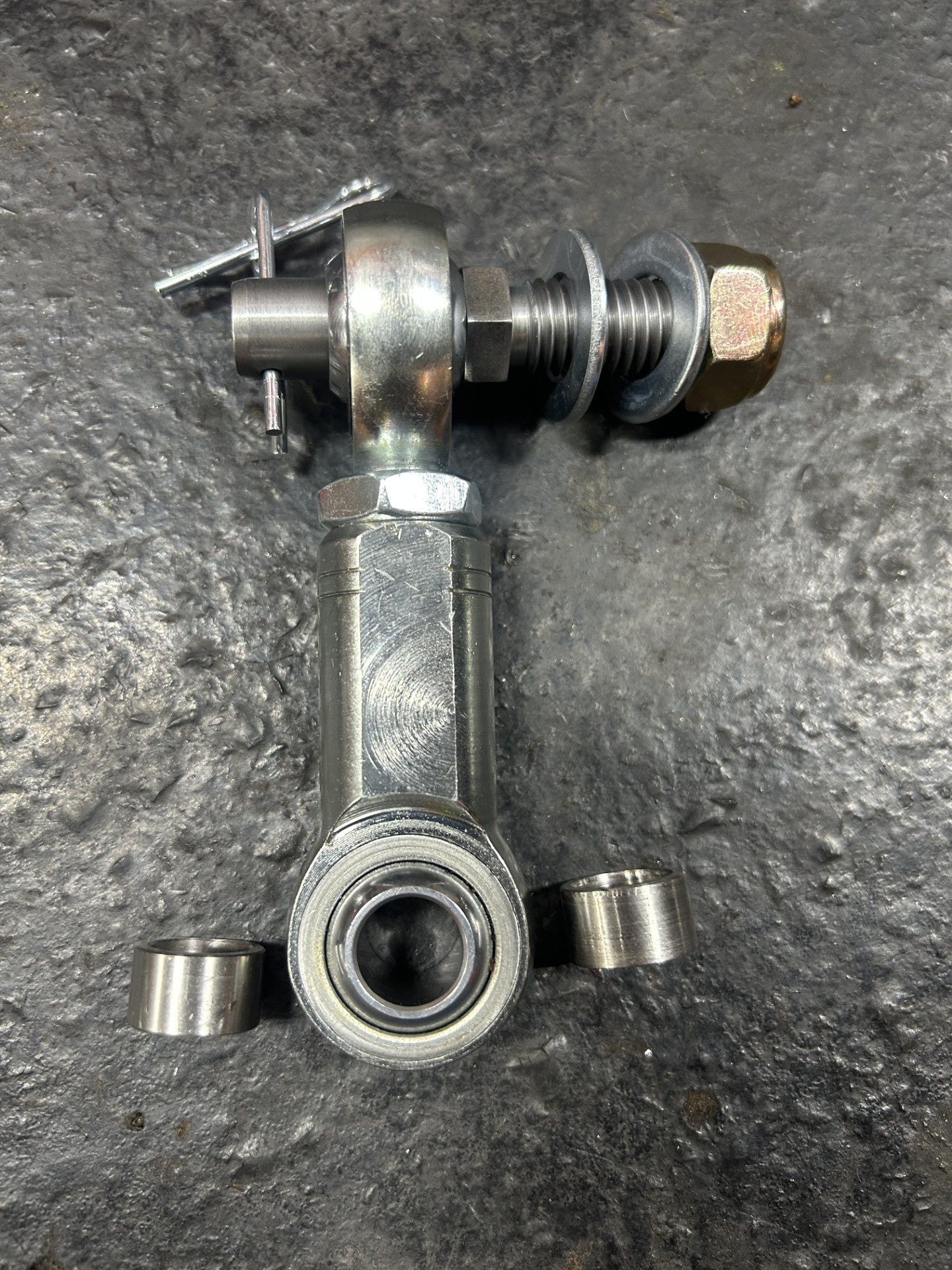

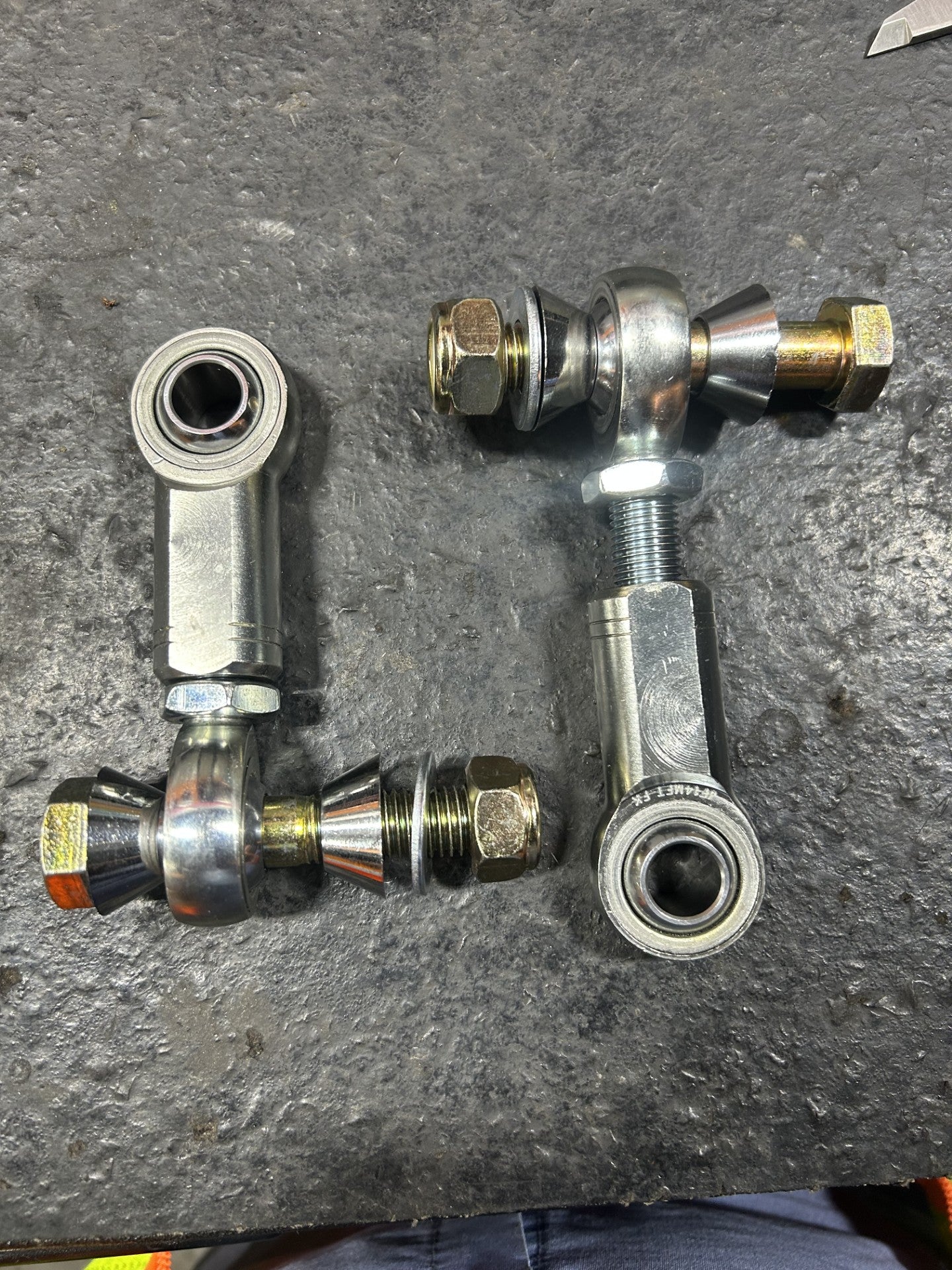

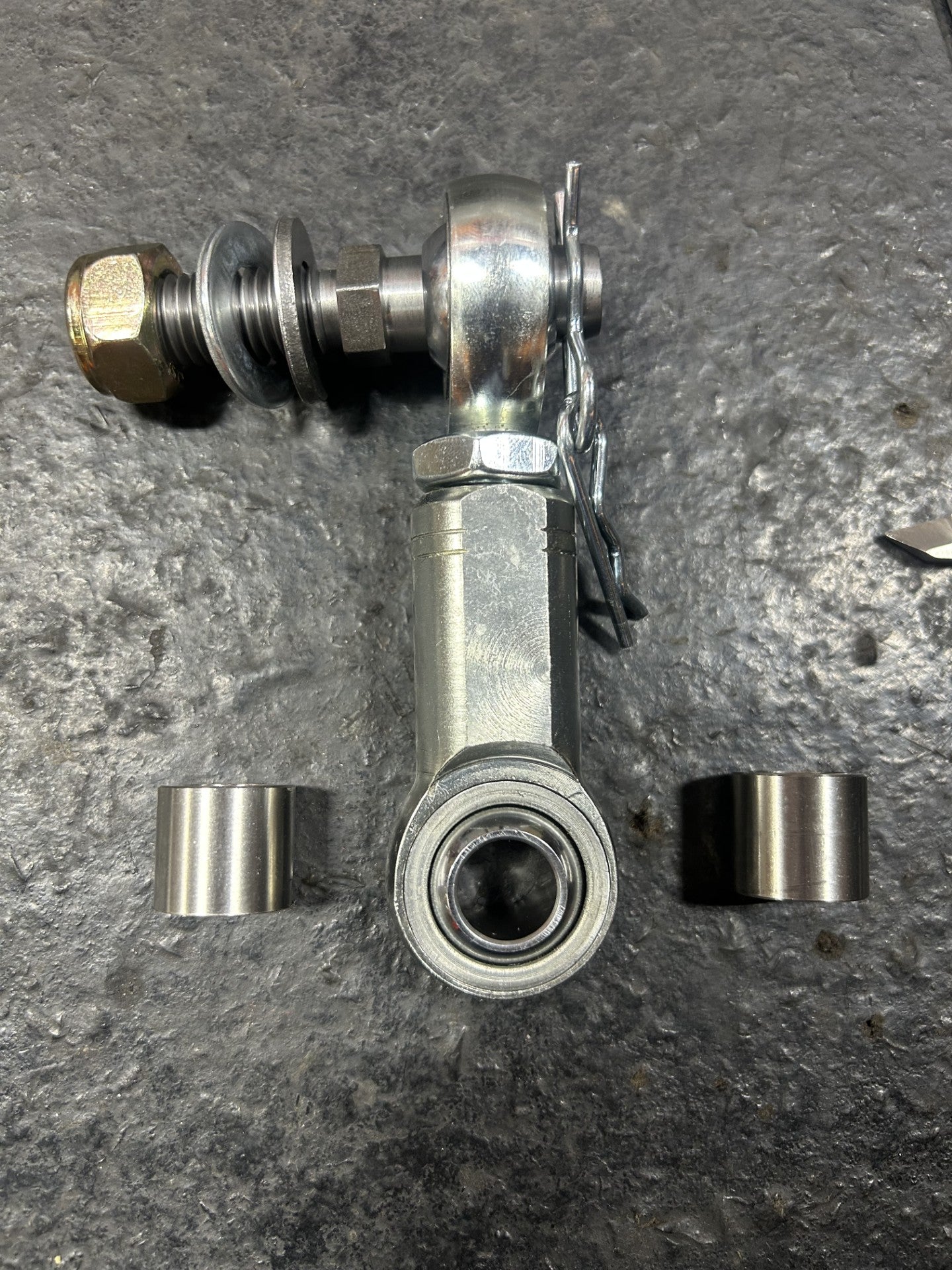

RedRunner Designs Type 6 Sway Bar Links are adjustable 14 mm double heim sway bar links built for newer Toyota truck platforms and other applications that use a clevis style lower sway bar link mount.

These links use FK Bearing heim joints at both ends for strength, movement, and adjustability. They are designed for drivers who need a stronger, rebuildable sway bar link setup for daily driving, lifted suspension setups, and off road use.

Type 6 links adjust from 88 mm to 105 mm center to center and are available in multiple thread and lower spacing configurations to match different Toyota sway bar link setups.

Key Features

14 mm Double Heim Design – Uses FK Bearing heim joints at both ends for strength, smooth movement, and long term serviceability.

Adjustable Length – Adjustable from 88 mm to 105 mm center to center to help fine tune sway bar link geometry.

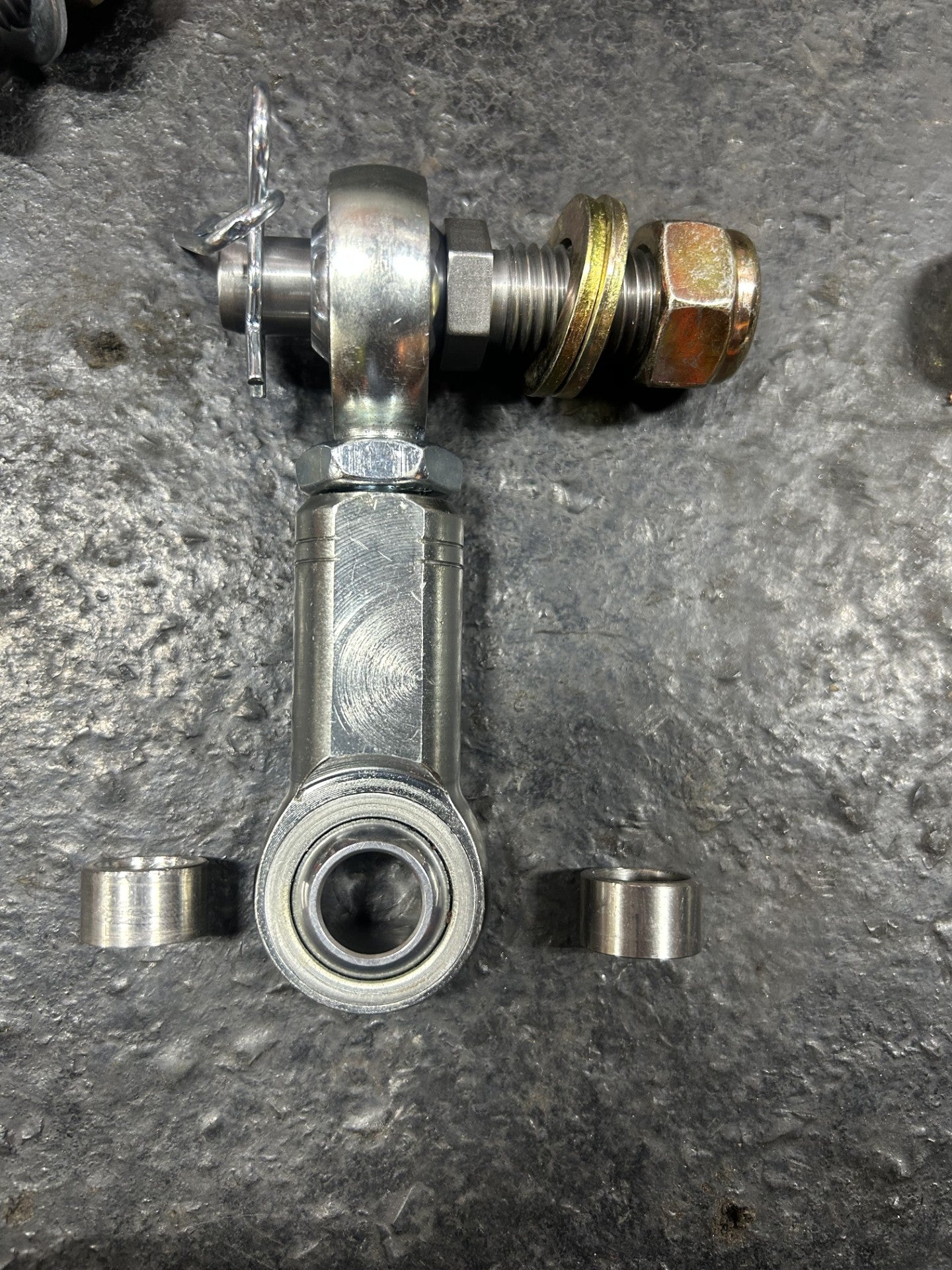

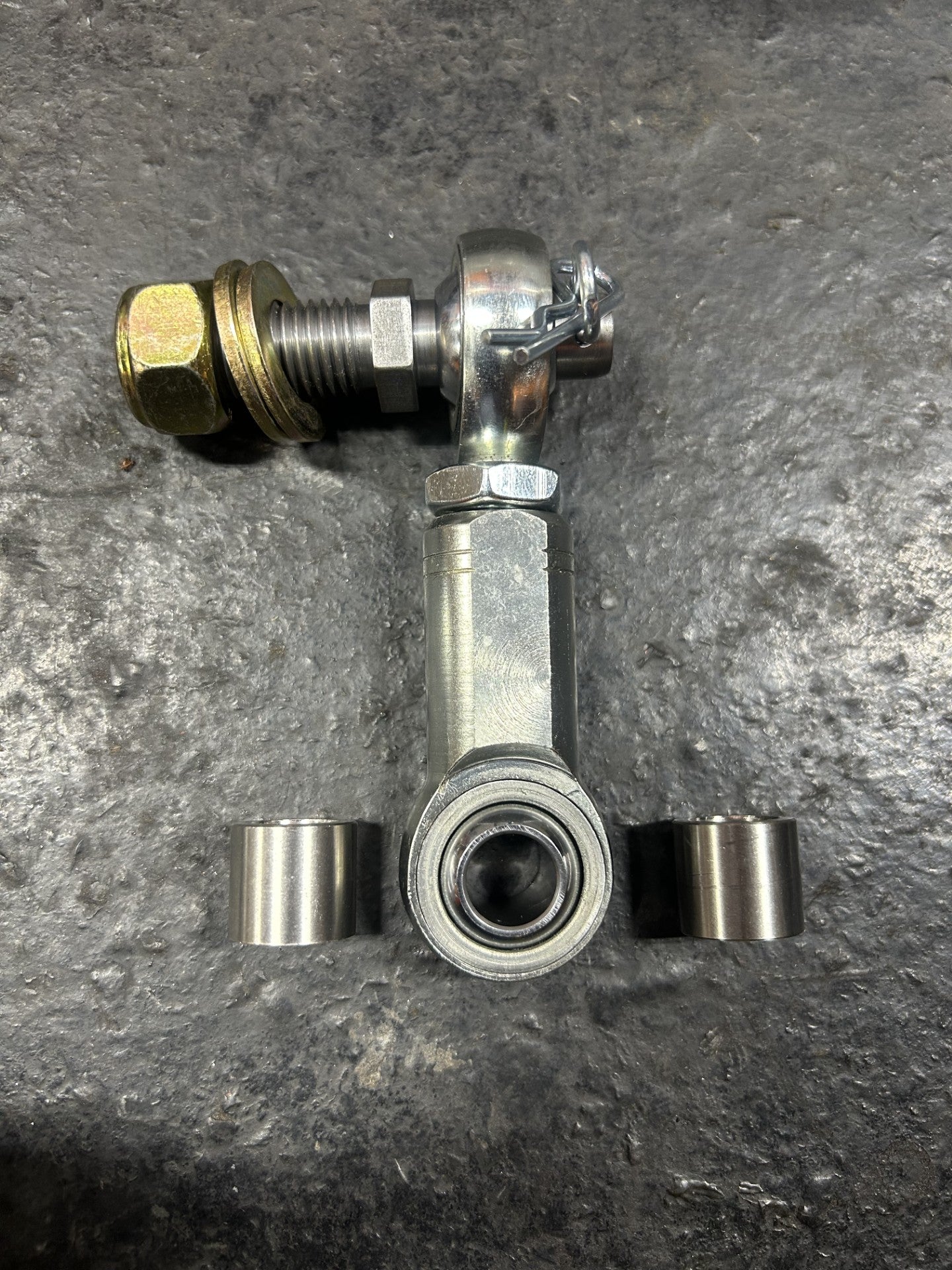

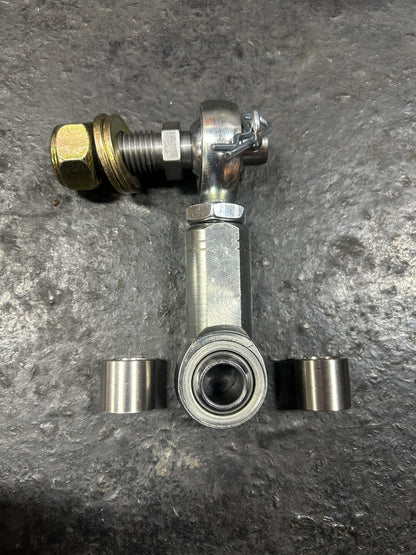

Multiple Lower Spacing Options – Available with 40 mm or 55 mm lower spacing depending on your factory lower mount.

Multiple Thread Configurations – Available in 14 mm x 14 mm and 14 mm x 16 mm thread configurations.

Reuses Lower OEM Mounting Bolt – All Type 6 variations reuse the factory lower mounting bolt at the lower clevis mount.

Rebuildable Design – Replace worn components instead of replacing the entire link.

Built for Modern Toyota Platforms – Designed around newer Toyota truck sway bar link setups and selected older Toyota full size applications.

Made in the USA – Proudly made on home turf.

Available Configurations

Type 6 links are available in four main configurations:

14 mm x 14 mm Thread | 55 mm Lower Spacing

14 mm x 14 mm Thread | 40 mm Lower Spacing

14 mm x 16 mm Thread | 55 mm Lower Spacing

14 mm x 16 mm Thread | 40 mm Lower Spacing

Before ordering, verify both the thread configuration and lower mounting spacing needed for your vehicle.

Length Range

Type 6 links adjust from:

88 mm to 105 mm center to center

Before ordering, measure your current sway bar link mounting length and confirm that this adjustment range will work for your setup.

Lower Mounting Bolt Note

All Type 6 variations reuse the lower OEM mounting bolt.

Do not discard your factory lower bolt during installation. The Type 6 lower mount is designed to fit inside the lower clevis style bracket and use the original lower mounting bolt.

Type 6 vs Type 9

Please verify your factory sway bar link style before ordering.

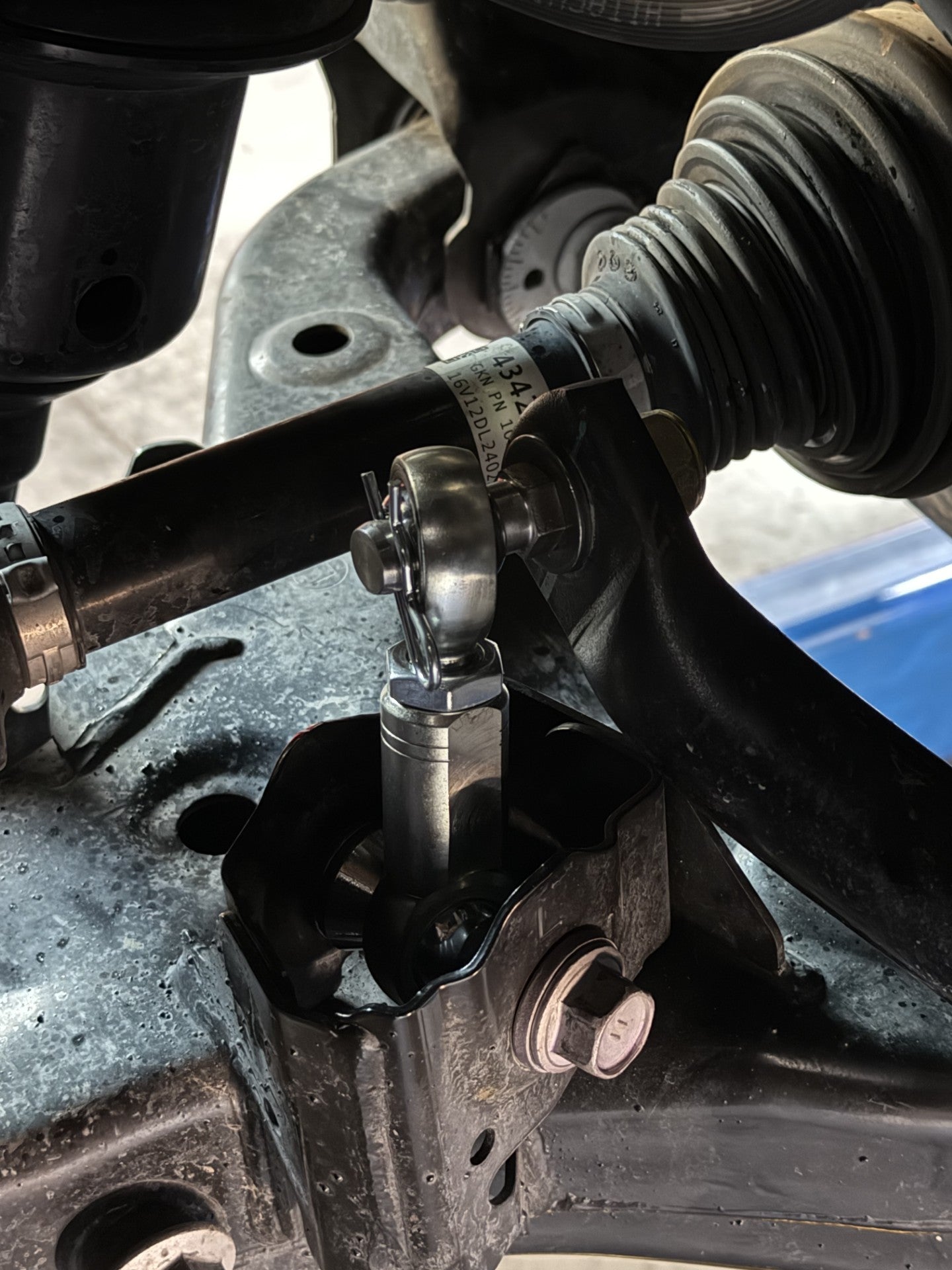

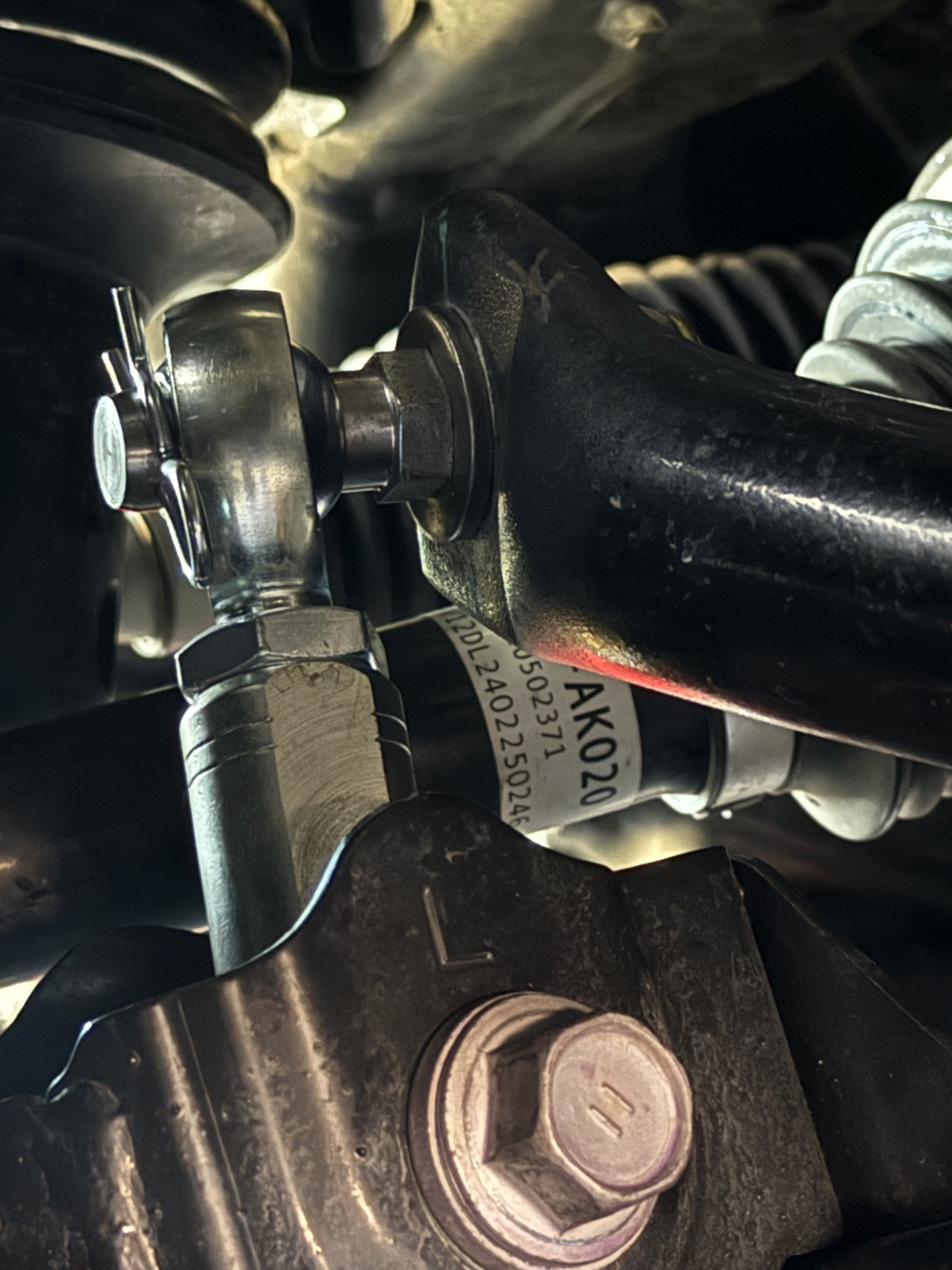

Type 6 is designed for applications that use a clevis style lower mount, where the sway bar link is captured inside the lower bracket and secured with the OEM lower mounting bolt.

If your factory sway bar link mounts externally over a pin, shaft, or stud, you may need the larger Type 9 style instead.

If you are unsure, send us clear photos of your current sway bar links and both mounting points before ordering.

Confirmed and Developing Fitment Notes

Fitment can vary by model, trim package, suspension setup, and factory sway bar link style. The notes below are based on current RedRunner Designs fitment information.

2025 Toyota Land Cruiser 1958
Confirmed as Type 6. Configuration should still be verified before ordering.

2025 Toyota Tacoma Sport
Type 6
14 mm x 16 mm Thread | 55 mm Lower Spacing

2025 Toyota Tacoma
Type 6
14 mm x 14 mm Thread | 55 mm Lower Spacing

2025 Toyota TRD Premium Trim
Type 6
14 mm x 14 mm Thread | 55 mm Lower Spacing
Model still needs to be confirmed before this note is treated as final fitment.

Common and Developing Applications

Type 6 links are intended for newer Toyota truck platforms and selected older Toyota full size applications.

Common and developing applications include:

2025+ Toyota 4Runner
2024+ Toyota Tacoma
2024+ Toyota Land Cruiser
2007–2021 Toyota Tundra
2008–2022 Toyota Sequoia
Other Toyota TNGA-F truck platform applications

Fitment may vary by model, trim package, suspension setup, and factory sway bar link style.

Important Fitment Note

Vehicle application alone does not guarantee fitment.

Before ordering, confirm:

Current sway bar link style
Thread configuration
Lower mounting spacing
Current sway bar link mounting length
Suspension lift height or suspension modifications
Clearance around the sway bar, suspension, brake, axle, and steering components

If you are unsure which setup you need, contact us before ordering with your year, make, model, trim, suspension setup, current link measurements, and clear photos of your current sway bar links.

Not Sure Which Setup You Need?

Send us your year, make, model, trim level, lift height or suspension setup, current link measurements, and photos of your current sway bar links.

We will help you confirm whether Type 6 is the correct setup and which configuration you need.

Important Safety Notice

For quick disconnect setups, you are responsible for securely supporting the sway bar when it is disconnected. Depending on the vehicle and suspension setup, an unsecured sway bar may contact surrounding suspension, steering, axle, brake, or CV components.

Always secure the sway bar before driving.

You may also disconnect only one side, leaving the opposite link connected to help support the sway bar while providing the same disconnect effect.

Strong. Adjustable. Rebuildable. Built for modern Toyota truck platforms.

Sold as a PAIR.
