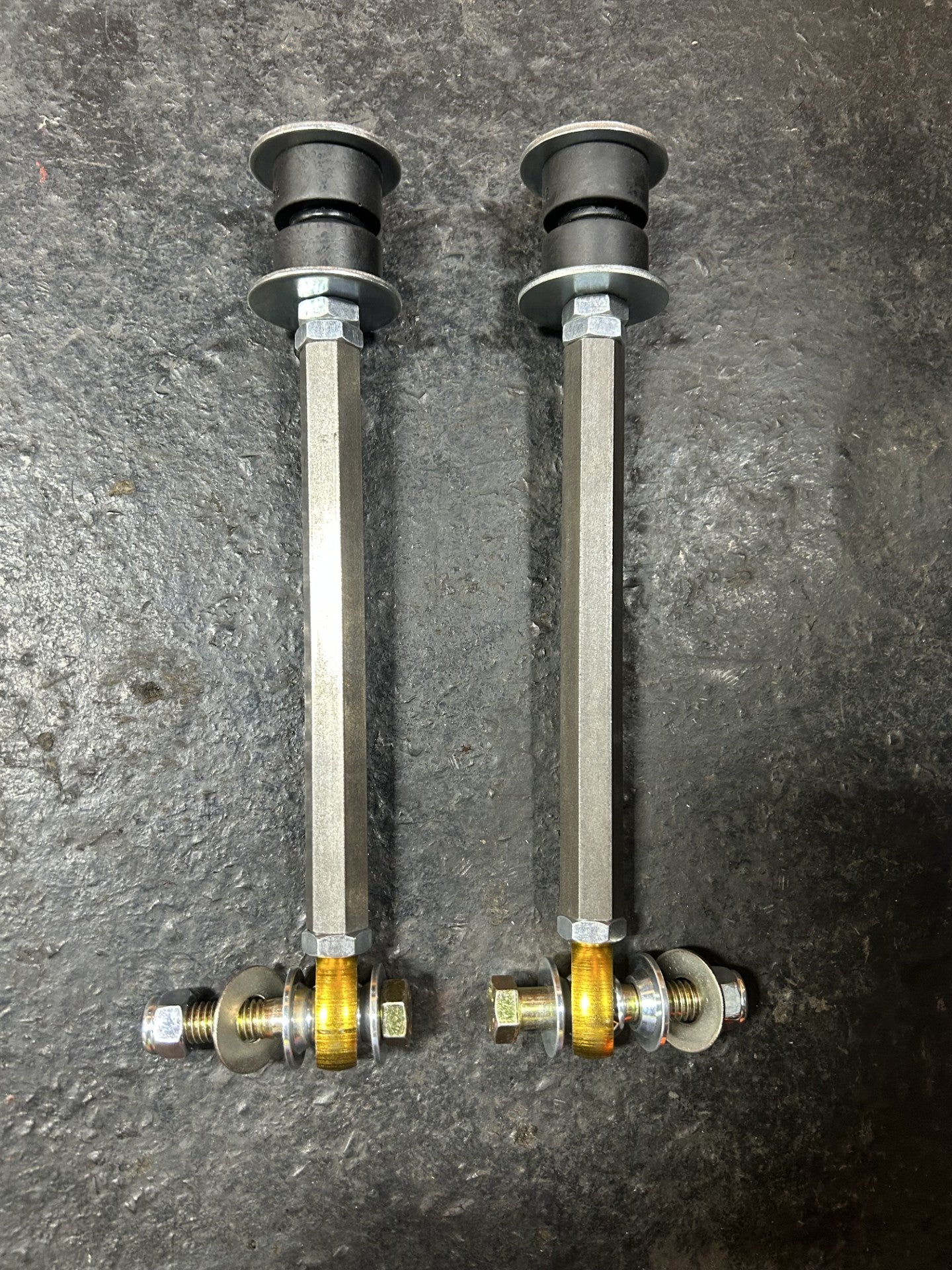

Type 5 Extra Long Adjustable Bolt On Sway Bar Links

Built for longer sway bar link applications, RedRunner Designs Type 5 Bolt On Sway Bar Links are essentially the extra long bolt on version of our Type 1 design.

They use the same general Type 1 style layout, but in a much longer adjustable package for vehicles that need more link length than our standard Type 1 setup can provide.

Type 5 bolt on links are designed for applications such as lifted Jeep XJ, ZJ, and MJ models, selected Ford Raptor setups, and other vehicles with longer sway bar link requirements where a permanent bolt on sway bar link is preferred over a quick disconnect setup.

These links are adjustable, rebuildable, available with red or black bushings, and now finished in black zinc coating for improved corrosion resistance and a cleaner appearance.

Key Features:

Bolt On Design – A secure, permanent sway bar link connection for drivers who do not need a quick disconnect system.

Extra Long Type 1 Style Design – Built as a longer version of our Type 1 bolt on sway bar link system.

Adjustable Length – Allows fine tuning for longer sway bar link applications and modified suspension setups.

Two Lower Bolt Options – Choose the lower bolt length that best matches your mounting point.

Red or Black Bushings – Available with your choice of red or black bushings.

Black Zinc Coated – All new Type 5 links are black zinc coated for corrosion resistance and a clean finish.

Rebuildable Design – Replace worn components instead of replacing the entire link.

Made in the USA – Proudly made on home turf.

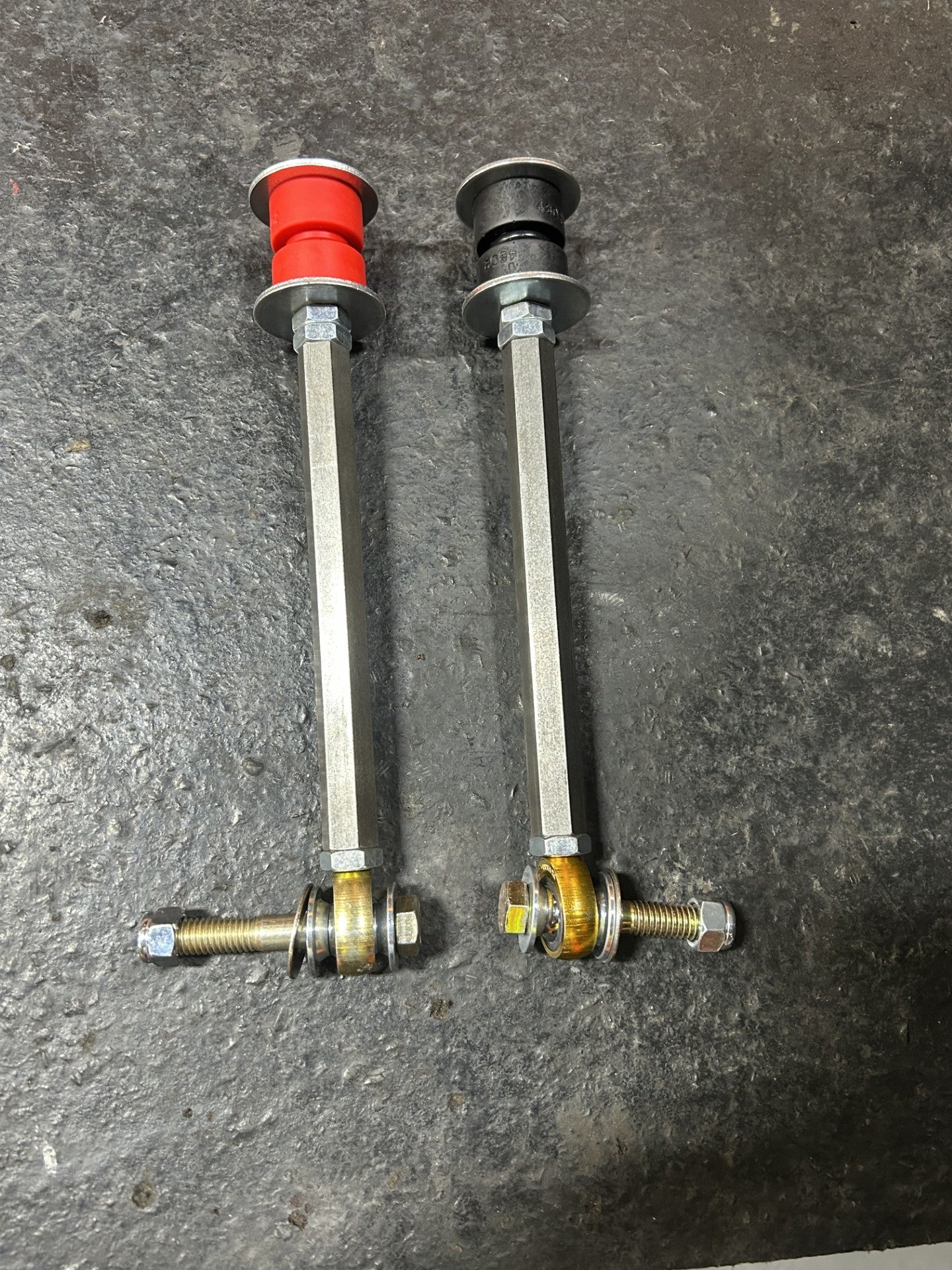

Bushing Color Options

Type 5 Bolt On links are available with either red or black bushings.

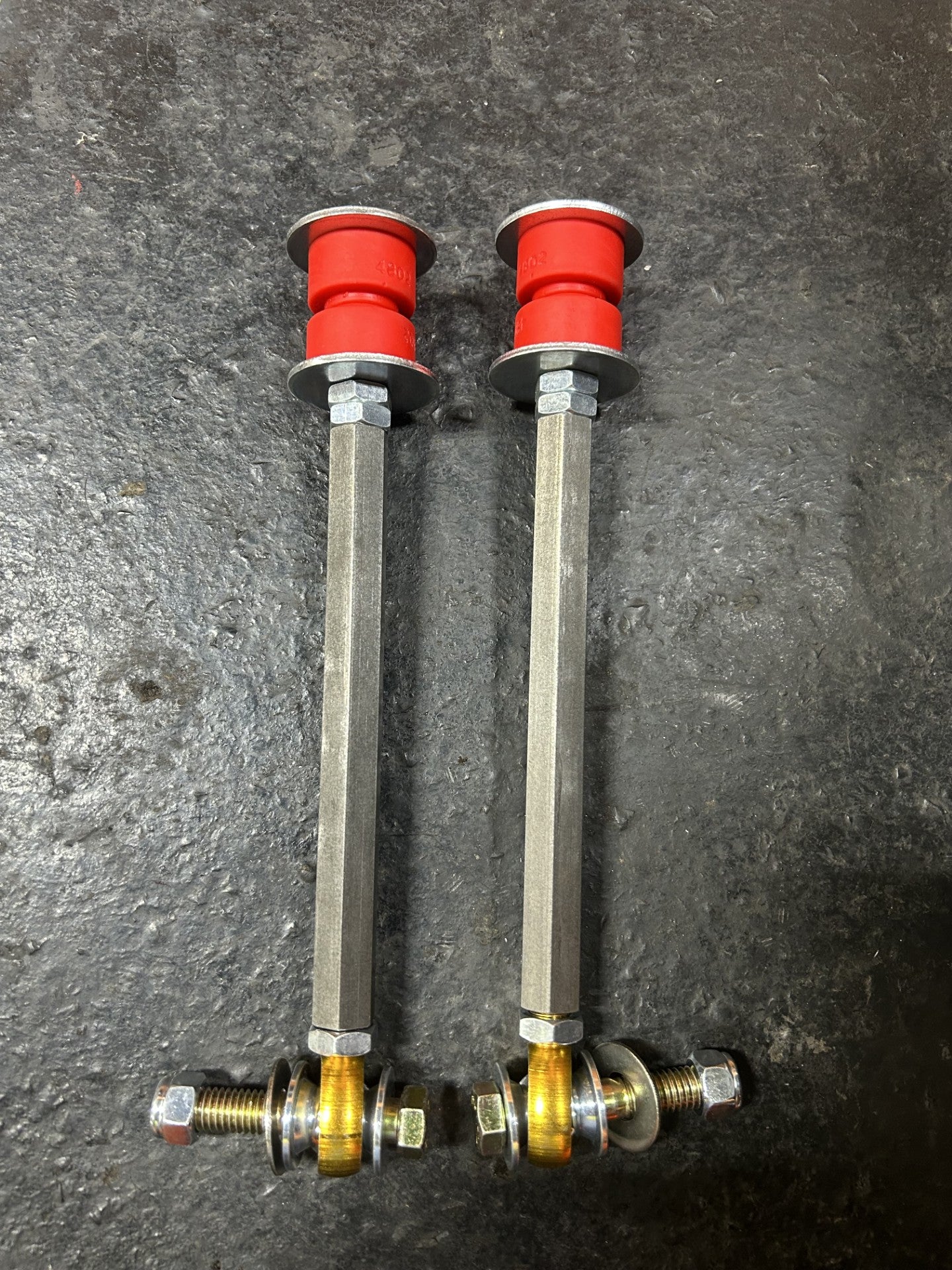

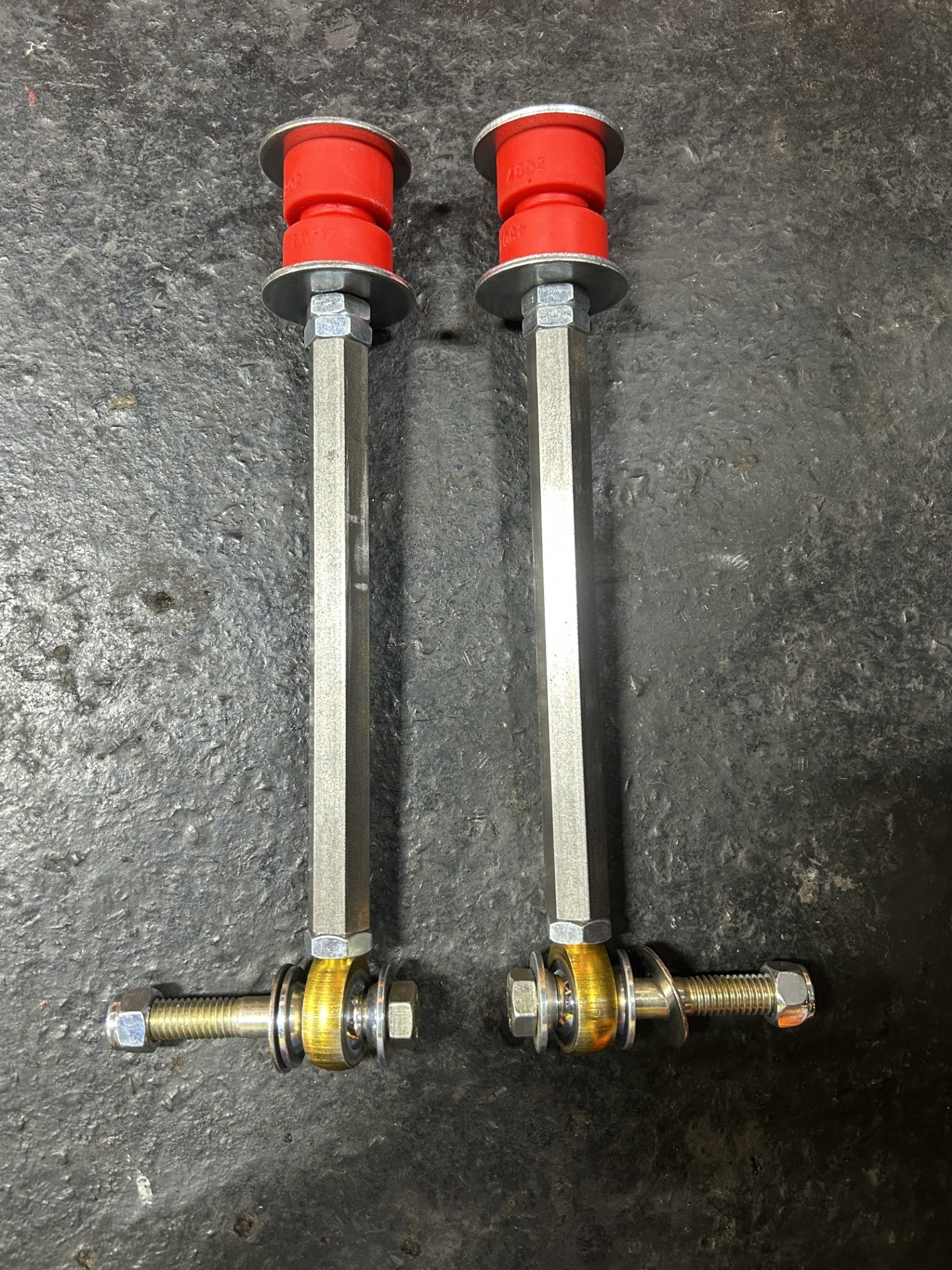

Red Bushings

A classic RedRunner look with red bushings.

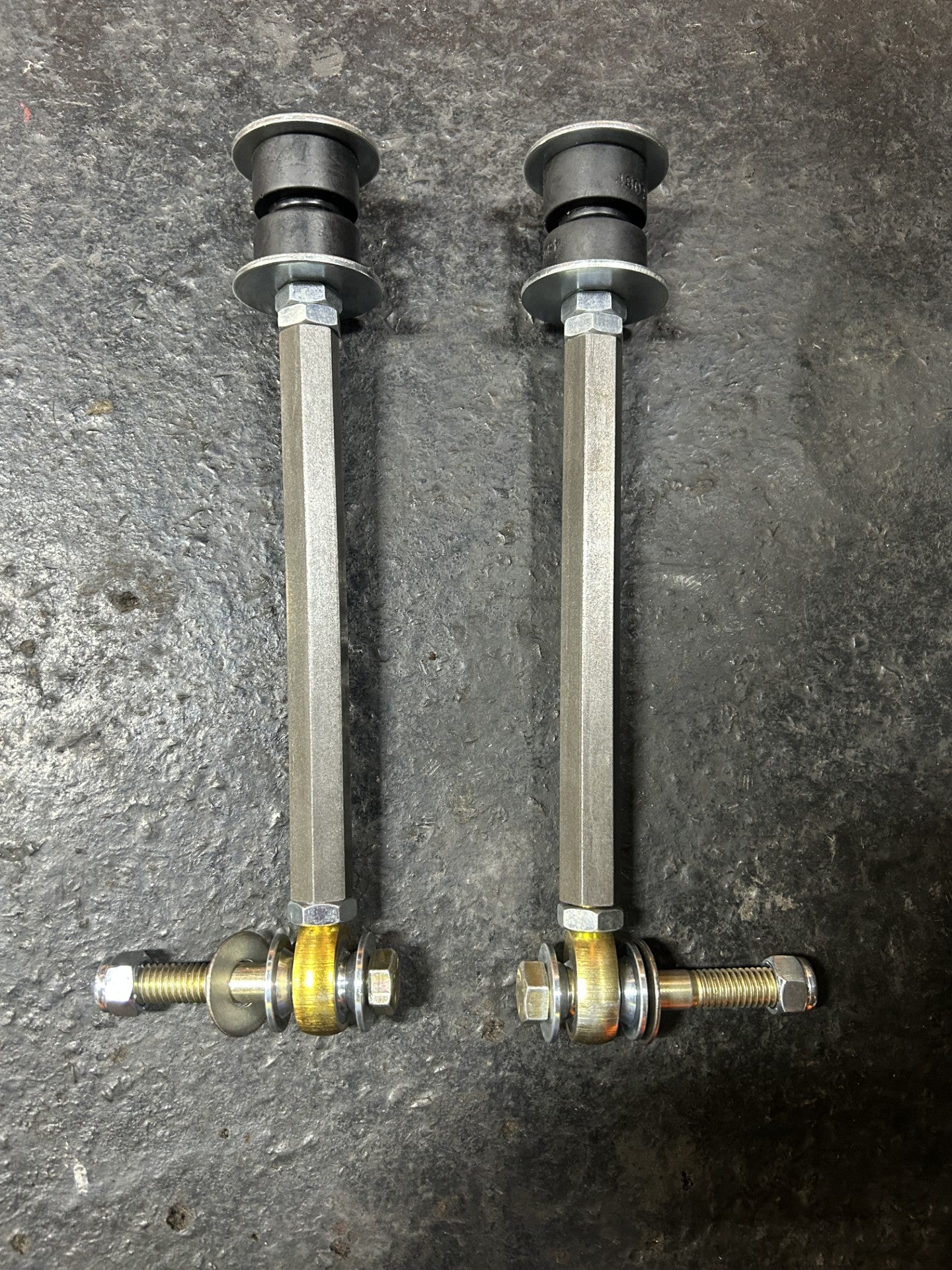

Black Bushings

A cleaner, more subtle look with black bushings.

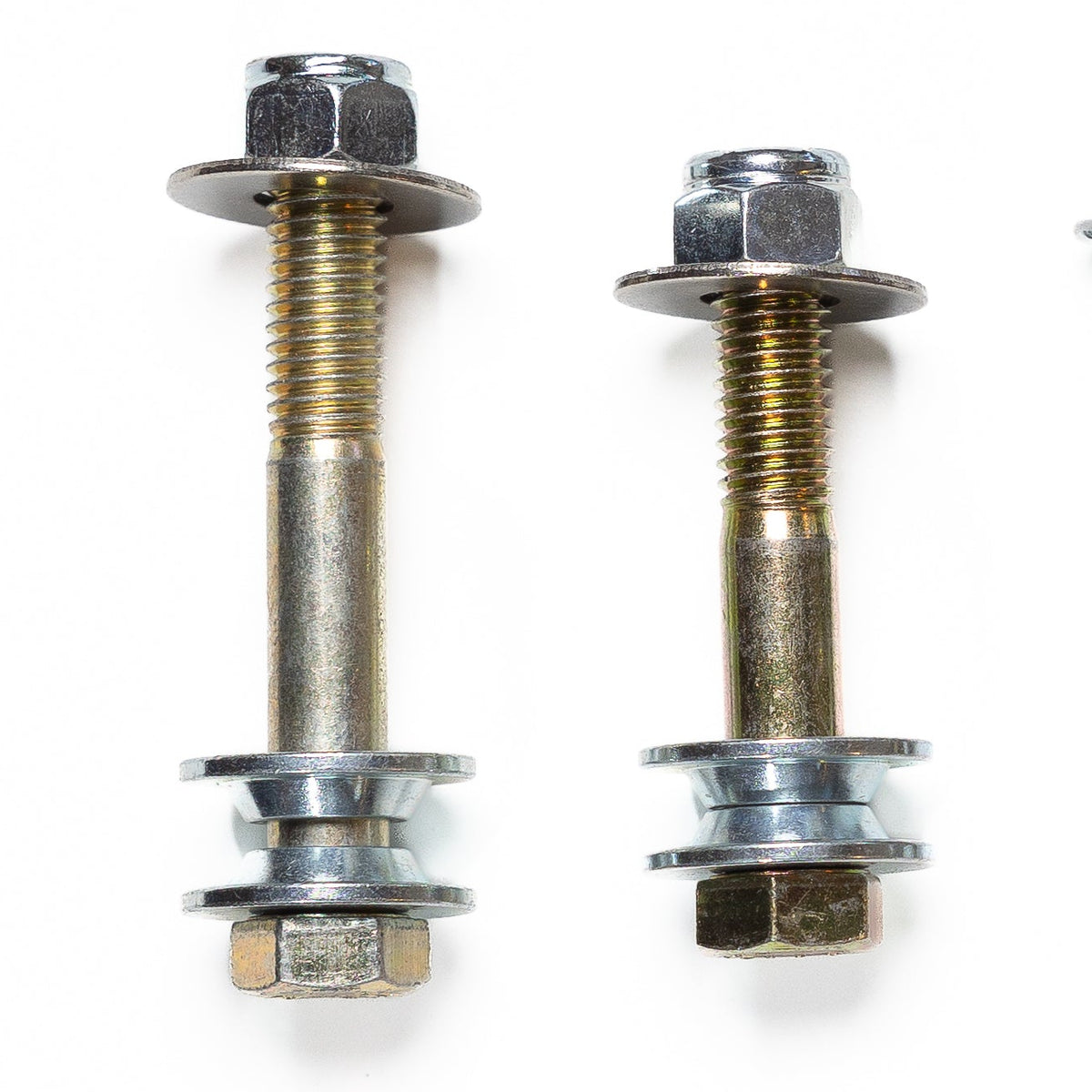

Lower Bolt Options

Type 5 Bolt On links are available with two lower bolt options.

Both lower bolt options use 7/16 inch lower mounting hardware.

Short Lower Bolt

• 24 mm usable mounting length
• Approximately 0.94 inch usable mounting length
• Best for Jeep applications and other vehicles with smaller tab style lower mounting points

Long Lower Bolt

• 36 mm usable mounting length
• Approximately 1.42 inches usable mounting length
• Best for applications with thicker or recessed lower mounting points

Usable mounting length is the remaining mounting space available after the included hardware and proper nyloc engagement are accounted for.

For 1st Gen Ford Raptors, the long lower bolt is the recommended option.

If you are not sure which lower bolt you need, choose the long bolt or contact us before ordering with photos of your sway bar mounting points.

Common Applications

Type 5 links are intended for longer sway bar link applications where our Type 1 links are not long enough.

Common and developing applications include:

Jeep XJ with up to 3 inches of lift
Jeep ZJ with up to 3 inches of lift
Jeep MJ with up to 3 inches of lift
Selected 1st Gen Ford Raptor applications
Potential Ram 2500 and Ram 3500 applications
Other custom or modified suspension setups requiring extra long bolt on sway bar links

Currently confirmed fitment is limited. These links have been tested on a Jeep XJ with a 3 inch lift and are being tested on multiple 1st Gen Ford Raptor setups.

Not Sure Which Setup You Need?

Because Type 5 links are used across several vehicle platforms and modified suspension setups, fitment depends on your mounting style and required link length.

Before ordering, we recommend checking:

Current sway bar link mounting length
Lower mounting point thickness
Upper mounting point style
Clearance around the sway bar and suspension

Send us your year, make, model, lift height, current mounting length, lower mounting point thickness, preferred bushing color, and photos of both mounting points and we will help you choose the correct RedRunner setup.

Extra long. Adjustable. Rebuildable. Built for the setups that need more length.

Sold as a PAIR.
