Straight Link Style – Double Quick Disconnect Sway Bar Links

For Chevy Silverado's, Ford F-Series, Older Toyotas & Other Similar Applications

Take your build to the next level with RedRunner Designs Type 3 Double Quick Disconnect Sway Bar Links.

These straight link style sway bar links use removable pins at both ends, allowing you to remove the entire link in seconds when it is time to hit the trail. Keep your sway bar connected for on road stability, then pull the pins and remove the links for more suspension articulation off road.

Available in Standard and Extended lengths with your choice of Red or Black Energy Suspension bushings.

Key Features:

• Double Quick Disconnect Design – Pull the pins at both ends and remove the entire sway bar link in seconds.
• Straight Link Style – Designed for applications where the upper and lower sway bar link mounts are directly in line with each other.
• Two Fixed Length Options – Choose the length that best matches your vehicle and suspension setup.
• Energy Suspension Bushings at Both Ends – Durable polyurethane bushings provide a strong and rebuildable connection.
• Heavy Duty Construction – Built with quality components and 12 mm shanks for demanding use.
• Rebuildable – Replace worn components instead of replacing the entire sway bar link.
• Black Zinc Coated – Helps resist corrosion and stand up to the elements.
• Made in the USA – Proudly made on home turf.

 Available Sizes

Standard Length

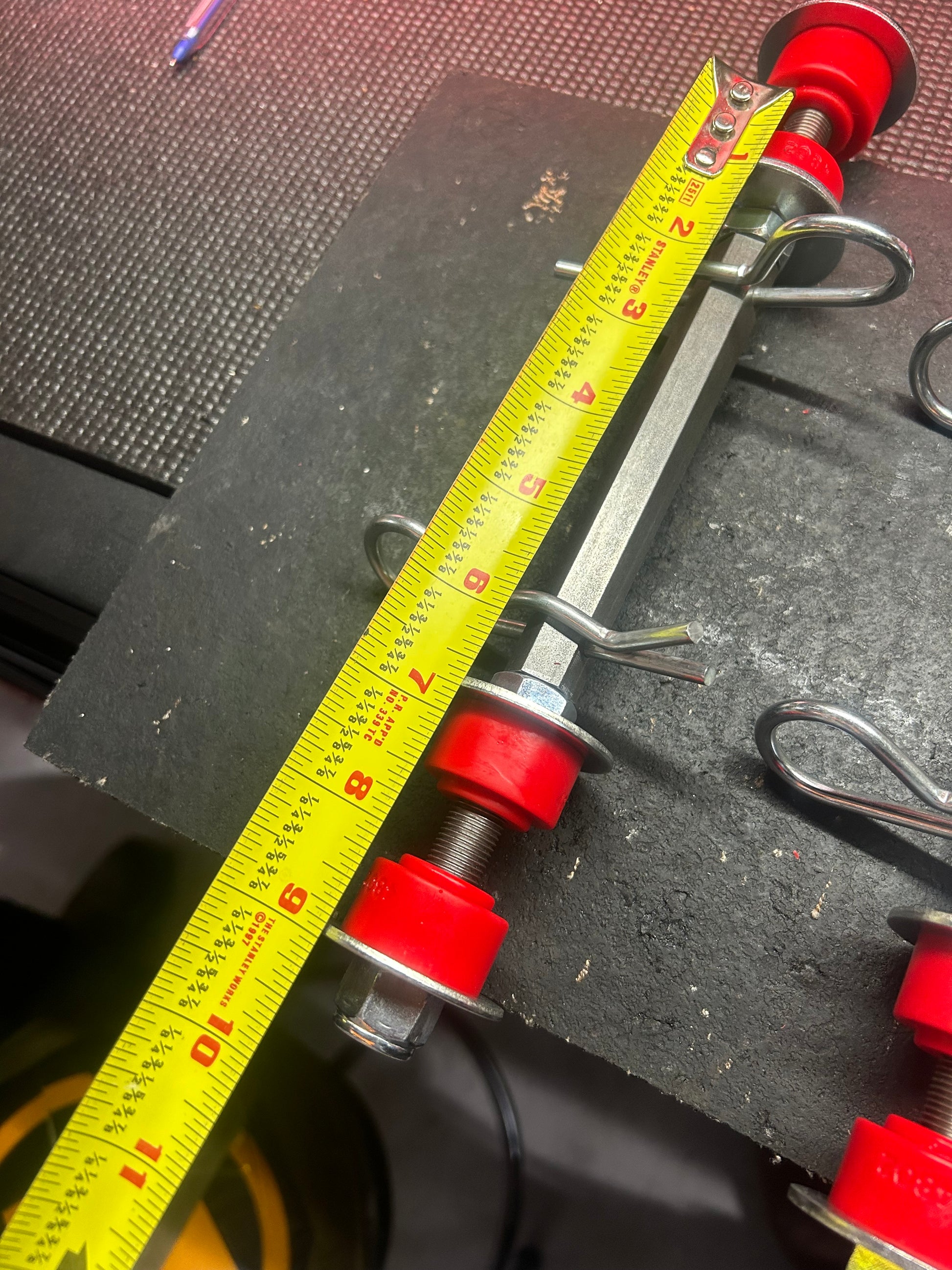

• 5.25 inches center to center
• Fixed length
• NOT adjustable

Extended Length

• 6.75 inches center to center
• Fixed length
• NOT adjustable

 Available Bushing Colors

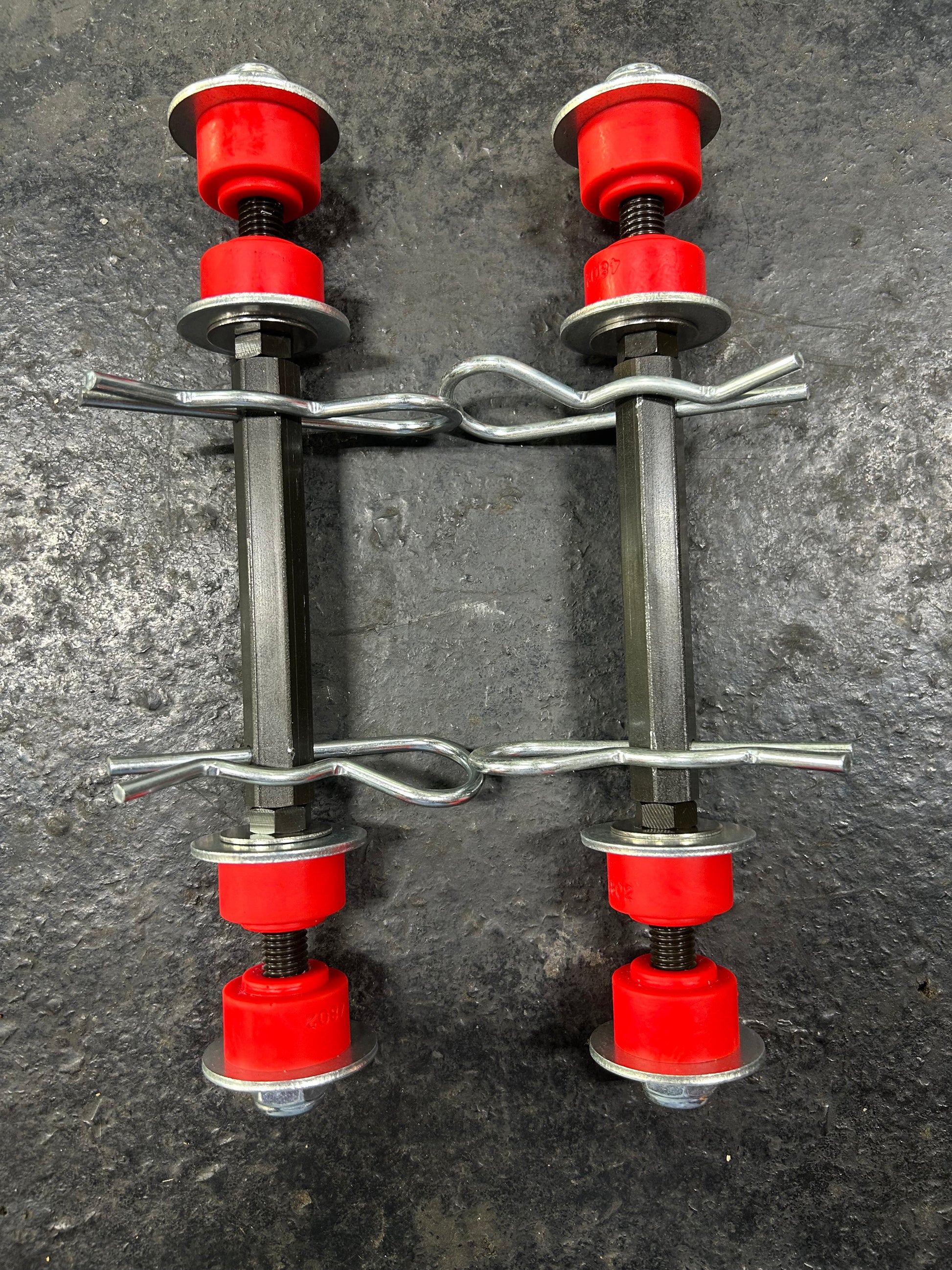

• Red

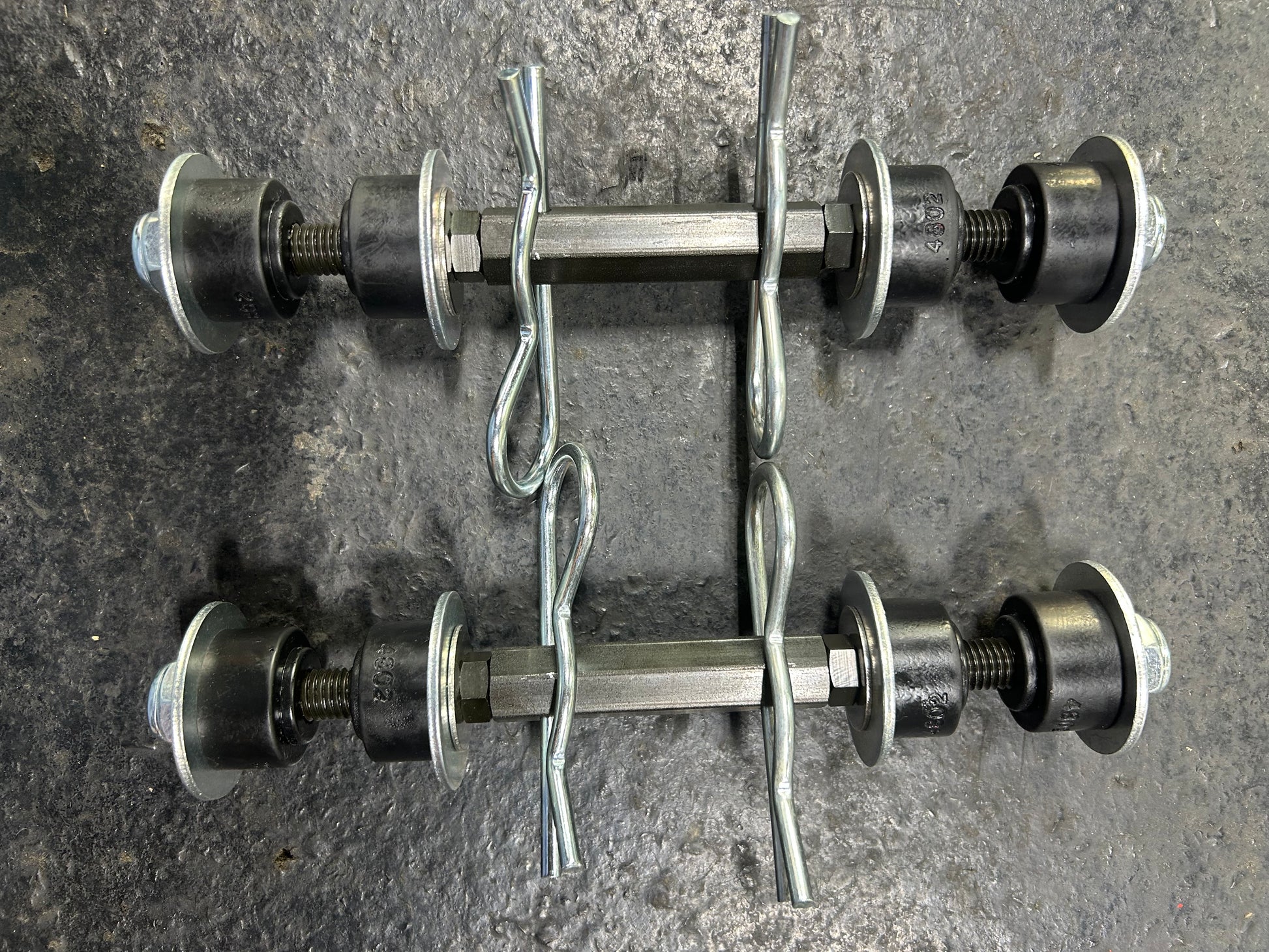

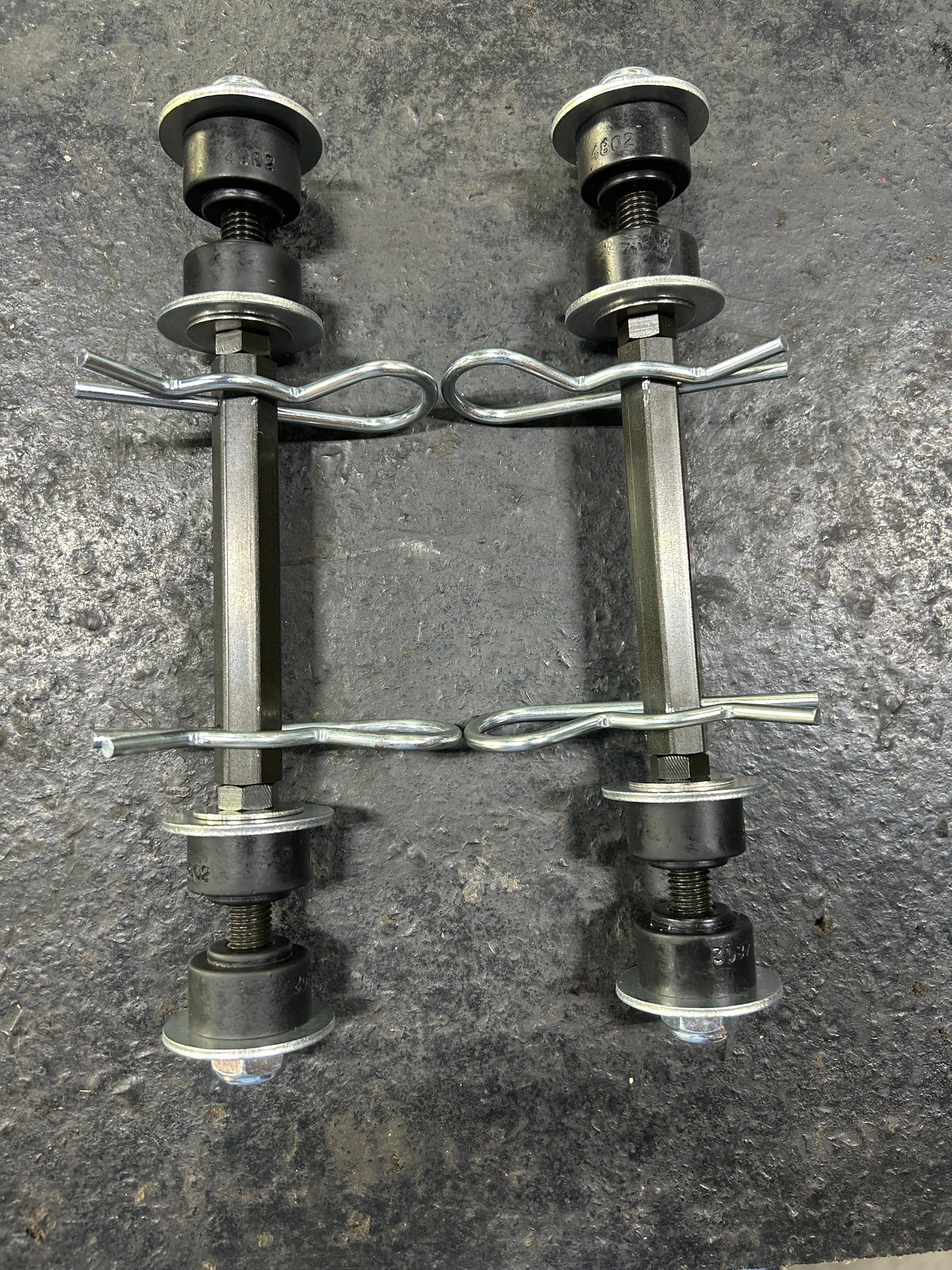

• Black

⚠️ IMPORTANT MOUNTING REQUIREMENT

These links will only work when the upper and lower mounting points are flush and parallel with each other, or directly in line from top to bottom.

Angled or offset mounting points may require a different RedRunner sway bar link style.

Please verify your mounting configuration and required length before orderingCommon Applications:

• Chevy Silverado and similar GM trucks
• Ford F-150 and F-Series pickups
• Select older Toyota applications
• Other vehicles with straight, inline sway bar link mounting points

Our vehicle fitment chart is still being built. Because these links are available in two fixed lengths, vehicle style fitment alone does not determine which size you need.

If you do not see your vehicle listed, send us your year, make, model, current sway bar link mounting length, and a photo of both mounting points. We will help you find the correct RedRunner link for your vehicle.

💥 Disconnect both ends. Remove the whole link. Hit the trail with more flex.

Sold as a PAIR.
